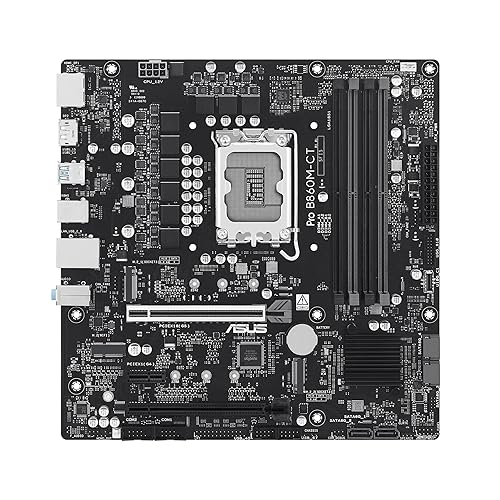

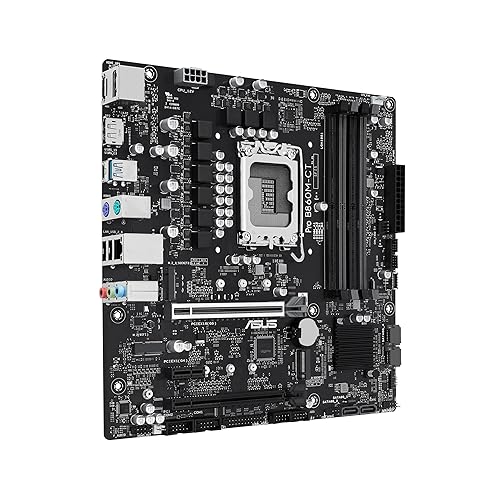

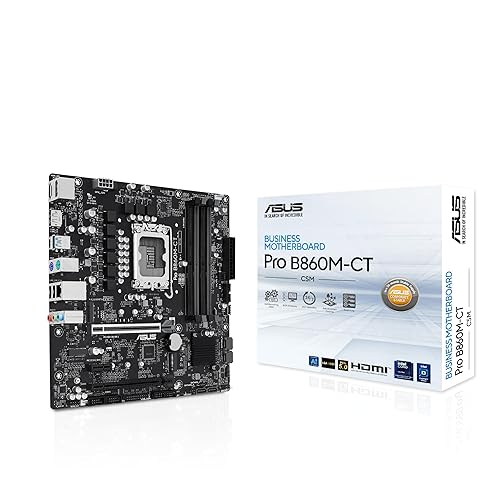

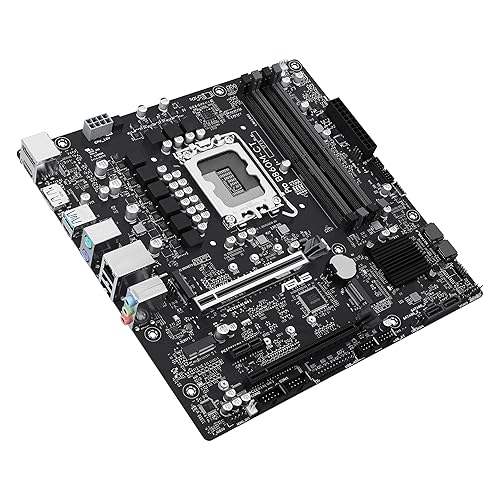

ASUS PRO B860M-CT-CSM Intel® B860 (LGA 1851) mATX Motherboard, PCIe 5.0, DDR5, 2X M.2, Intel® 1G LAN, 2X DP, HDMI, USB Type-C®, TPM IC onboard with Enhanced Security, Reliability and Manageability

ASUS Pro B860M-CT-CSM is equipped with outstanding features, including DDR5, PCIe 5.0 x16 SafeSlot, two M.2 slots, Dual DisplayPort, HDMI™, USB 10Gbps Type-A, USB 10Gbps Type-C, , Dual DIMM clips, ASUS Driver Hub, BIOS EZ Deploy, TXT, ASUS My Hotkey, Q-LED Core, TPM IC onboard, ASUS Control Center Express (ACCE).

PRO B860M-CT-CSM

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Ultrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-C. Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (Series 2)
• ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced System Security: A self-recovering BIOS, TPM to safeguard PCs and NIST SP 800-193 compliance

RAM	‎DDR5
Memory Speed	‎8000 MHz
Brand	‎Asus
Series	‎PRO B860M-CT-CSM
Product Dimensions	‎24.38 x 24.38 x 4.83 cm; 544.31 g
Item dimensions L x W x H	‎24.4 x 24.4 x 4.8 Centimetres
Colour	‎Black
ASIN	B0FDS5VNKX
Best Sellers Rank	#87,459 in Electronics (See Top 100 in Electronics) #743 in Computer Motherboards
Date First Available	June 21 2025
Manufacturer	Asus
Brand	Asus
CPU socket	LGA1851
Compatible devices	Personal Computer
RAM memory technology	DDR5
Compatible processors	Core™ Ultra Processors(Series 2)
Chipset type	INTEL B860
Memory clock speed	8000 MHz
Platform	Windows 10, Windows 11
Model name	PRO B860M-CT-CSM
Memory storage capacity	256 GB
