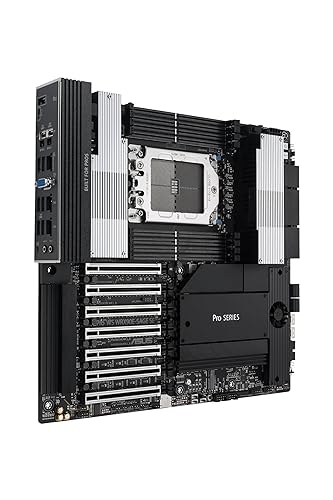

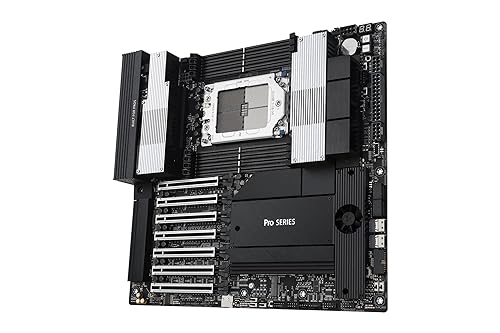

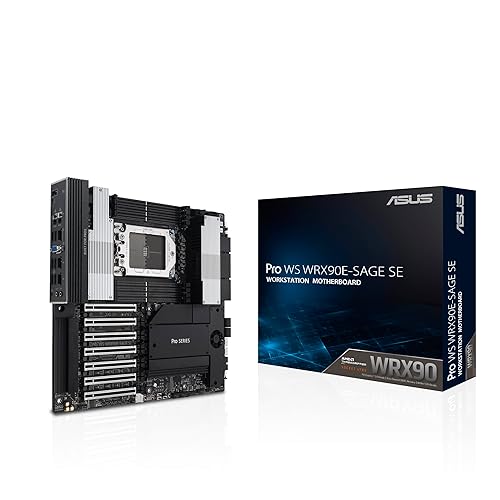

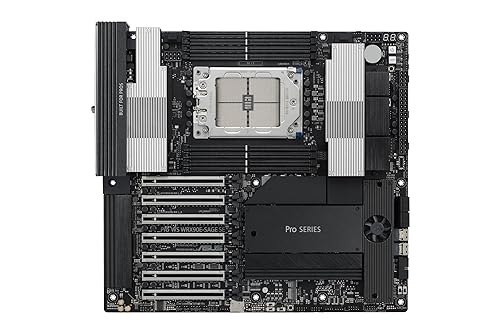

ASUS Pro WS WRX90E-SAGE SE EEB Workstation Motherboard, AMD Ryzen™ Threadripper™ PRO 7000 WX-Series, ECC R-DIMM DDR5, 32 Power-Stage,7xPCIe 5.0x16, PCIe 5.0 M.2, 10Gb & 2.5Gb LAN, Multi-GPU Support

Designed for professionals in AI training, deep learning, animation, 3D rendering, and media production, the ASUS Pro WS WRX90E-SAGE SE feature expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability. Each motherboard includes centralized management software, so they’re also an efficient and cost-effective option for IT administrators. For creative professionals of all kinds, these high-performance boards are the ideal solution.

PRO WS WRX90E-SAGE SE

Brand	ASUAA
CPU socket	Socket sTR5
Compatible devices	Desktop
RAM memory technology	DDR5
Compatible processors	Threadripper PRO 7000 WX-Series Processors
Chipset type	AMD WRX90
Memory clock speed	2242 MHz
Platform	Windows 11, Windows 10
Model name	Pro WS WRX90E-SAGE SE
Memory storage capacity	2 TB

---

• AMD socket sTR5 supports up to 96-core CPUs: Ready for AMD Ryzen Threadripper PRO 7000 WX-Series Processors.
• Ultrafast connectivity:Seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4 40Gbps Type-C and SlimSAS NVMe support.
• CPU and memory overclocking: Support for up to 2TB ECC R-DIMM DDR5 memory modules (1DPC)
• Robust power and thermal design: 32 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
• PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
• Server-grade IPMI remote management:Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
• Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

RAM	‎DDR5
Memory Speed	‎2242 MHz
Number of USB 2.0 Ports	‎2
Brand	‎ASUAA
Series	‎Pro WS WRX90E-SAGE SE
Item model number	‎Pro WS WRX90E-SAGE SE
Parcel Dimensions	‎37.59 x 36.19 x 7.87 cm; 4.68 Kilograms
Colour	‎BLACK
ASIN	B0CQRYXWWQ
Date First Available	Dec 21 2023
Manufacturer	ASUS
Brand	ASUAA
CPU socket	Socket sTR5
Compatible devices	Desktop
RAM memory technology	DDR5
Compatible processors	Threadripper PRO 7000 WX-Series Processors
Chipset type	AMD WRX90
Memory clock speed	2242 MHz
Platform	Windows 11, Windows 10
Model name	Pro WS WRX90E-SAGE SE
Memory storage capacity	2 TB
