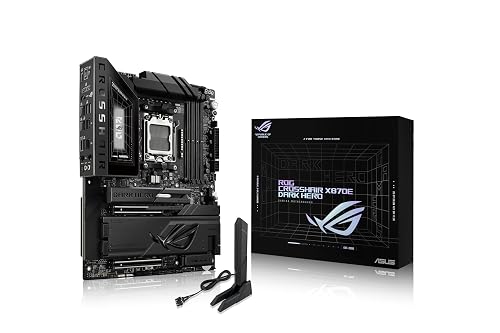

ASUS ROG Crosshair X870E Dark Hero AM5 ATX Motherboard, DDR5, DIMM Fit, WiFi 7, 10Gb & 5Gb LAN, PCIe 5.0, 5X M.2, 2X USB4, AIO Q-Connector, 3-Year Warranty Dark Hero ATX
$992.24
In stock
- Brand
- ASUS TeK
- SKU
- DTCA-199291398672
ASUS TeKB0GKR5WNWBCROSSHAIR X870E DARK HEROIntel MotherboardsMotherboardMotherboardsPC & Server Components
$992.24
In stock
ASUS ROG Crosshair X870E Dark Hero ATX motherboard delivers 20+2+2 power stages, DDR5 support, PCIe 5.0, five M.2 slots with 3D VC heatsink, USB4 connectivity, AI Cache Boost, PCIe Slot Q-Release, and AIO Q-Connector for effortless high-end builds focused on stability, cooling efficiency, premium components, and advanced DIY features.
CROSSHAIR X870E DARK HERO
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Intelligent Control: ASUS-exclusive AI Cache Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II, and AEMP to simplify setup and improve performance
- ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
- Robust Power Solution: 20(110A)+2(110A)+2 power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: 3D VC M.2 heatsink for one PCIe 5.0 M.2 slot, Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
- Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots and three PCIe 4.0 M.2 slots, all with substantial cooling solutions
- Abundant Connectivity: Dual USB4 Type-C ports, two USB 20Gbps Type-C front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), nine additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI port
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek 10Gb Ethernet and Realtek 5Gb Ethernet
- DIY Friendly Design: AIO Q-Connector, PCIe Slot Q-Release, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
| Product Dimensions | 30.48 x 24.38 x 3.81 cm; 4.2 kg |
| Manufacturer | Asus |
| ASIN | B0GKR5WNWB |
| Item model number | ROG Crosshair X870E DARK HERO |
| Country/Region of origin | China |
| Brand | Asus |
| CPU socket | Socket AM5 |
| Compatible devices | Personal Computer |
| RAM memory technology | DDR5 |
| Compatible processors | AMD Ryzen 9000, AMD Ryzen 8000, AMD Ryzen 7000 |
| Chipset type | AMD X670E |
| Platform | Windows 11 |
| Model name | ROG Crosshair X870E DARK HERO |
| CPU model | Ryzen 7 |
| Memory storage capacity | 256 GB |
| Processor Socket | Socket AM5 |
| Compatible Devices | Personal Computer |
| RAM Memory Technology | DDR5 |
| Compatible Processors | AMD Ryzen 9000, AMD Ryzen 8000, AMD Ryzen 7000 |
| Chipset Type | AMD X670E |
| CPU Model | Ryzen 7 |
| Memory Storage Capacity | 256 GB |
| Ram Memory Maximum Size | 256 GB |
| Main Power Connector Type | 24-Pin |
| Graphics Card Interface | PCI Express |
| Memory Slots Available | 4 |
| Number of Ports | 32 |
| System Bus Standard Supported | Serial ATA/600 |
| Total SATA Ports | 4 |
| Total Usb Ports | 23 |
| Number of Ethernet Ports | 2 |
| Total Number of HDMI Ports | 1 |
| Total PCIe Ports | 2 |
| Chipset Family | AMD X870E |
| Model Name | ROG Crosshair X870E DARK HERO |
| Model Number | ROG Crosshair X870E DARK HERO |
| Unit Count | 1 Count |
| Number of Items | 1 |
| UPC | 199291398672 |
| Number of Packs | 1 |
| Country of Origin | China |
| Built-In Media | 1 Pack M.2 Q-Latch, 1 x ASUS WiFi Q Antenna, 1 x DDR5 Fan Mount, 1 x Heat Pad for M.2 22110, 1 x Q Connector, 1 x Quick Start Guide English language not guaranteed)., 1 x ROG Bottle Opener, 1 x ROG CROSSHAIR X870E DARK HERO Motherboard, 1 x ROG Fan (60mm), 1 x ROG Sticker, 1 x ROG Thank You Card, 1 x user manual (English language not guaranteed), 3 Pack M.2 Q-Slide, 5 packs of M.2 rubber |
| Mfr Part Number | ROG CROSSHAIR X870E DARK HERO |
| Warranty Description | 3 Years |
| Best Sellers Rank | #9,381 in Electronics (See Top 100 in Electronics) #45 in Computer Motherboards |
| Customer Reviews | 4.74.7 out of 5 stars (35) 4.7 out of 5 stars |
| Item Dimensions L x W x H | 30.5L x 24.4W x 2H centimetres |
| GTIN | 199291398672 |
