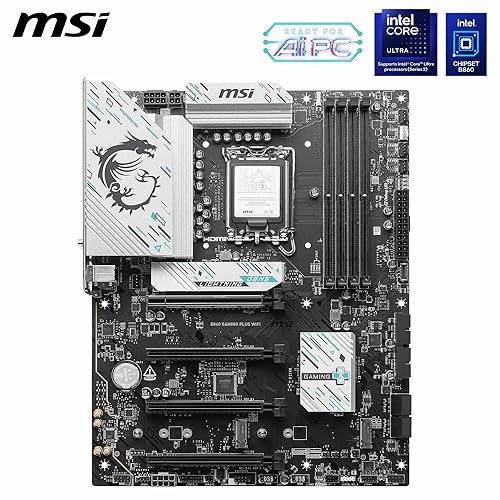

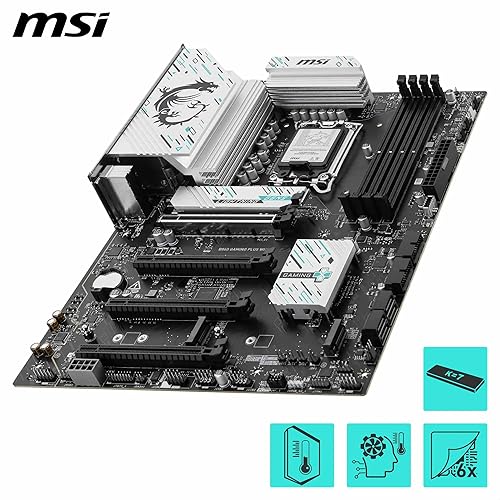

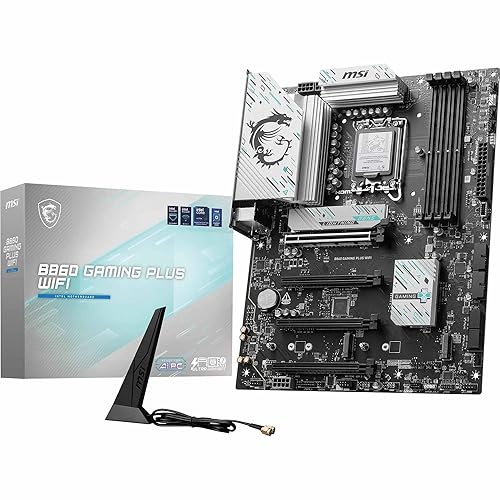

MSI B860 Gaming Plus WiFi Motherboard, ATX - Supports Intel Core Ultra Processors (Series 2), LGA 1851 - DDR5 Memory Boost 8800+ MT/s (OC), PCIe 5.0 x16 x16, M.2 Gen5, Intel Killer 5G LAN, Wi-Fi 7

B860 GAMING PLUS WIFI: Win the Competition Designed for gaming based on the Intel B860 chipset (Intel Core Ultra Processors (Series 2), LGA 1851), the B860 GAMING PLUS WIFI motherboard includes premium GPU support with a PCIe 5.0 x16 slot, improved DDR5 memory support (8800+ MT/s OC), and extensive M.2 (Gen5 and Gen4) storage options with EZ M.2 Shield Frozr II. To power Intel Core Ultra Processors (Series 2), the B860 GAMING PLUS WIFI is equipped with a 12 Duet Rail Power System (P-PAK) VRM for the CPU and 8+4 pin CPU power connectors, augmented with multiple passive cooling features. The B860 GAMING PLUS WIFI motherboard features a durable server-grade 6 layer PCB and all-new Surface Mount Technology (SMT) solder welding for improved signal clarity. Connectivity includes full-speed Wi-Fi 7 and Bluetooth 5.4 technology, Intel Killer 5G LAN, Thunderbolt 4, 4K/60Hz display support, and 7.1 HD Audio. For gamers looking for an Intel Core Ultra Processors (Series 2) platform that unites PCIe 5.0 x16 graphics card architecture, improved DDR5 memory support, Thunderbolt 4 solution, and M.2 Gen5 storage options into one elegant design, the B860 GAMING PLUS WIFI gaming motherboard is the perfect choice.

B860GPLUSWIFI

• ULTRA POWER - SUPPORTS THE LATEST INTEL CORE ULTRA PROCESSORS (Series 2) IN HIGH PERFORMANCE - The B860 GAMING PLUS WIFI employs a 12 Duet Rail Power System (P-PAK) VRM for the Intel B860 chipset with Core Boost architecture

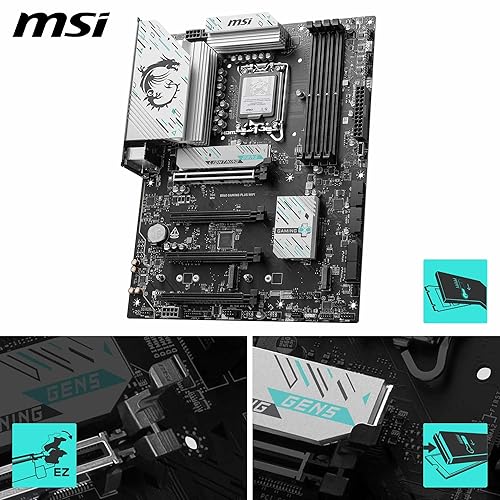

• FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
• DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable excellent memory overclocking speeds (1DPC 1R, 8800+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards
• TRIPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot with EZ M.2 Shield Frozr II to prevent thermal throttling, 1 x M.2 Gen4 x4 64Gbps slot and 1 x M.2 Gen4 x2 32Gbps slot
• ULTRA CONNECT - Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & Intel Killer 5G LAN; Rear ports include Thunderbolt 4 Type-C with display output and 7.1 HD Audio with Audio Boost

RAM	‎DDR5
Memory Speed	‎7800
Brand	‎MSI
Series	‎B860 Gaming Plus WiFi
Item Weight	‎3.49 pounds
Package Dimensions	‎14 x 11 x 3 inches
Manufacturer	‎MSI
ASIN	‎B0DQB8VZ2R
Country of Origin	‎China
Date First Available	‎January 13, 2025
Brand	MSI
CPU Socket	SOCKET 1851
Compatible Devices	Personal Computer
RAM Memory Technology	DDR5
Compatible Processors	Supports Intel Core Ultra Processors (Series 2)
Chipset Type	B860
Memory Clock Speed	7800
Platform	Windows 11
Model Name	B860 Gaming Plus WiFi
RAM Memory Maximum Size	256 GB
