Supermicro

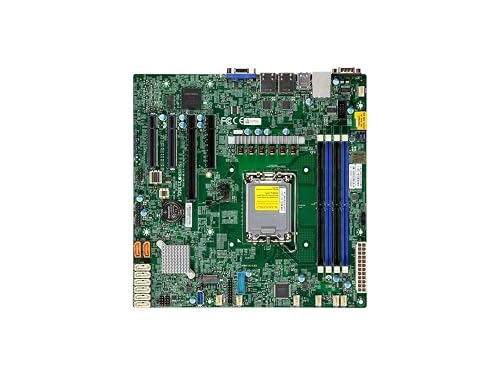

Supermicro MBD-X13SCL-F-O Intel LGA 1700 Single Socket mATX Server Motherboard
$546.09
Sold out
- Brand
- Supermicro
- SKU
- DTCA-672042899173
- Condition
- NEW
B0CXWQS5R8Intel MotherboardsMBD-X13SCL-F-OMotherboardsPC & Server ComponentsSupermicro
$546.09
Sold out
Supermicro MBDX13SCLFO, Intel LGA 1700 Single Socket mATX Server Motherboard. Features. Intel Xeon 6300series/E2400 Series Processor, Pentium Processor, Single Socket LGA1700 Socket V0 supported, CPU TDP supports Up to 95W TDP. Intel C262 controller for 8 SATA3 6 Gbps ports RAID 0,1,5,10. Up to 128GB ECC Unbuffered DIMM, DDR54400MHz, in 4 DIMM slots. 1 PCIe 5.0 x8. 1 PCIe 5.0 x8 in x16. 2 PCIe 4.0 x4 in x8. Dual LAN with Intel i210 Gigabit Ethernet Controller. M.2 Interface 1 PCIe 4.0 x4. M.2 Form Factor 2280/22110. M.2 Key MKey. 4 USB 3.2 Gen1 ports 2 rear 2 via header. 6 USB 2.0 ports 2 rear 4 via header. 1 USB 3.2 Gen1 TypeA headerSpecifications. CPU Socket Type LGA 1700. CPU Type Intel Xeon 6300series/ E2400/Pretium Processor. Number of Processor Support 1. CPU Features Up to 95W TDP. North Bridge Intel C262. Memory Slots 4 x DDR5 288pin. Memory Standard DDR5 4400. Maximum Memory Supported 128GB. ECC Supported Yes. PCI Express x8 1 x PCIe 5.0 x8 1 x PCIe 5.0 x8 in x16 slot. PCI Express x4 2 x PCIe 4.0 x4 in x8 slot. SATA 8 x SATA 6.0Gb/s. SATA RAID 0/1/5/10. Onboard Video Chipset A speed AST2600. LAN Chipset Intel I210. LAN Speed 10/100/1000Mbps. Max LAN Speed 2 x 1Gbps. Back I/O Ports 1 x COM Serial Port / 1 x DSub / 2 x LAN RJ45 / 2 x USB 2.0/1.1 / 3 x USB 3.2 Gen 1. Form Factor Micro ATX. Dimension W x L 9.6 x 9.6. Weight 2.2 lbs
MBD-X13SCL-F-O
- Intel Xeon 6300-series/E-2400 Series Processor, Pentium Processor, Single Socket LGA-1700 (Socket
- Intel C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots
- 1 PCIe 5.0 x8
- 1 PCIe 5.0 x8 (in x16)
| Manufacturer | Supermicro |
| ASIN | B0CXWQS5R8 |
| Item model number | MBD-X13SCL-F-O |
| Brand | Supermicro |
| Platform | Linux |
| Memory storage capacity | 4 GB |
| Graphics card interface | PCI Express |
| Number of ports | 6 |
| Number of USB 2 ports | 6 |
| Total USB ports | 1 |
| Memory Storage Capacity | 4 GB |
| Graphics Card Interface | PCI Express |
| Number of Ports | 6 |
| USB 2.0 | 6 |
| Total Usb Ports | 1 |
| Model Number | MBD-X13SCL-F-O |
| UPC | 672042899173 |
| Item Weight | 1.36 kg |
| Mfr Part Number | MBD-X13SCL-F-O |
| GTIN | 672042899173 |
