StarTech.com

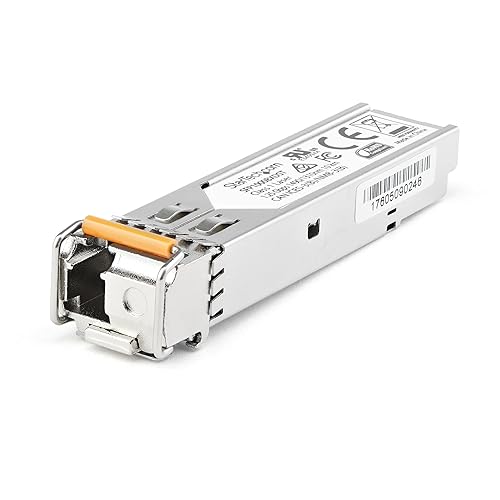

Dell EMC SFP-1G-BX10-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF) (SFP1GBX10UES)

Dell EMC SFP-1G-BX10-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF) (SFP1GBX10UES)

Returns / Exchanges: Sealed Product Only

065030883269

$25.02 CAD
$0.00 CAD $25.02 CAD
Sale Sold out
Shipping calculated at checkout.
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty 100% DELL EMC SFP-1G-BX10-U COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two TECHNICAL SPECS: 1000BASE-BX-U | 1Gbps | 1G Bi-Directional Upstream | Single Mode (SMF) | LC Connector | 1310nmTx/1490nmRx | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi) LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24 PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools The SFP1GBX10UES is a Dell EMC SFP-1G-BX10-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX10DES. They are designed, programmed and tested to work with 1000Base-BX10 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling. Technical Specifications: Wavelength: 1310nmTx/1490nmRx Maximum Data Transfer Rate: 1000 Mbps (1 Gbps) Type: Single Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 10 km (6.2 mi) MTBF: 3,713,222 hours Power Consumption: <1.3W DDM: Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance. Applications The StarTech.com Advantage Partner Numbers Ingram Micro Canada192HHN Tech Data Canada1V5736 SYNNEX Canada6459975 ASI Distribution Canada238156 D&H CanadaSFP1GBX10UESCA UPC065030883269 Compatibility undefined Specifications Warranty Information Warranty Lifetime Material Steel Hardware Compatible Brand Dell EMC Industry Standards IEEE 802.3 1000BASE-BX10 Packaging Information Package Height 1.2 in [3.1 cm] Package Length 4.5 in [11.5 cm] Shipping (Package) Weight 1.8 oz [50 g] Package Width 3.5 in [9 cm] Performance Power Consumption (In Watts) <1.3W DDM Yes MTBF 3,713,222 hours Type Single Mode Compatible Networks 1000 Mbps (1 Gbps) Maximum Data Transfer Rate 1.0 Gbps Max Transfer Distance 10 km (6.2 mi) Wavelength 1310nmTx/1490nmRx 1310nmTx/1490nmRx Fiber Operating Mode Full-Duplex Physical Characteristics Product Height 0.5 in [1.3 cm] Product Length 0.5 in [1.4 cm] Weight of Product 1.1 oz [30 g] Product Width 2.3 in [5.8 cm] What's in the Box Included in Package 1 - SFP Transceiver Certifications View downloadable documentation Accessories 1 - of 0 results Drivers/Downloads Datasheet sfp1gbx10ues_Datasheet.pdf Version:Datasheet Language:EN Talk to an Advisor We are always ready to assist you with any questions you may have. Live Chat (opens in new window)

SFP1GBX10UES
