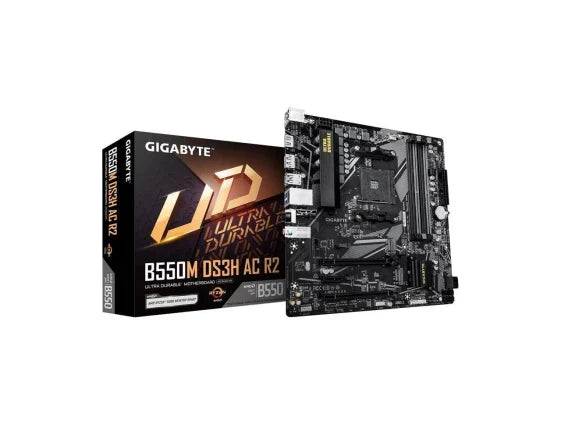

Gigabyte B550M DS3H AC R2 AM4 AMD B550 Micro ATX Motherboard

Gigabyte B550M DS3H AC R2 AM4 AMD B550 Micro ATX Motherboard

Returns / Exchanges: Sealed Product Only

889523048641

$157.45 CAD
$0.00 CAD $157.45 CAD
Sale Sold out
Shipping calculated at checkout.

Get your gaming build off on the right foot with the B550M DS3H AC R2 AM4 Micro-ATX Motherboard from GIGABYTE. Sporting a micro-ATX form factor, this motherboard gives you the utility of larger boards in a smaller package, ideal for builders who wish to focus on gaming components.

The DS3H AC R2 is built on AMD's B550 chipset, giving you access to an AM4 CPU socket for Ryzen 5000, 4000, and 3000 series processors. Four dual-channel DIMMs allow you to easily install up to 128GB of DDR4 memory for faster multitasking capabilities. Take advantage of enhanced storage capabilities with four SATA III ports and two M.2 PCIe connectors. Additionally, install various graphics and utility cards with one PCIe 4.0 x16 slot. You also get PCIe 3.0 x4 and x1 slots for utility cards. The back panel of the DS3H AC R2 gives you an array of USB-A 3.2 Gen 1 and 2.0 ports for your peripherals. Additionally, Wi-Fi 5 (802.11ac) support and a Realtek Gigabit LAN port allow you to connect to compatible networks. Windows 10 / 11 64-bit is required to take advantage of all the motherboard's features.

Ryzen Ready
The DS3H AC R2 is built upon the AMD B550 chipset, giving you access to the AM4 socket, ideal for select Ryzen 5000, 4000, and 3000 Series processors. Experience enhanced plug-and-play performance, allowing you to easily design your build for various capabilities such as gaming and design.

Ultimate Power Design
With a 5+3 phase digital VRM solution design and glass fabric printed circuit board, the DS3H AC R2 stabilizes system performance, balances voltage, and prevents moisture. Digital PWM and Low RDS(on) MOSFET components improve transient response, allowing this board to handle various levels of current with ease. Solid pin connectors promote durability and conductivity for a strong electrical connection. Anti-sulfur design gives resistors an added layer of protection, preventing contaminants from affecting your motherboard and preventing component failure.

PCIe 4.0 Ready
A single expansion slot and one M.2 interface work provide enhanced throughput that can easily handle high-powered graphics cards and SSDs.

Networking Connectivity
Essential for competitive online gaming and live streaming, the Realtek Gigabit LAN adapter allows you to experience enhanced network speeds. This is also backwards compatible with multi-gig configurations. You can also use built-in Wi-Fi 5 technology to transfer up to 433 Mb/s with compatible wireless networks.

Hi-Fi Audio
Built with gaming and media enthusiasts in mind, the DS3H AC R2 uses high-quality audio components and Audio Noise Guard to create deep and immersive audio experience.

Double Locking Bracket
GIGABYTE's patented double locking bracket ensures a solid connection for heavier graphics cards. A security tab locks in through the front of the bracket and is soldered on the other side, promoting durability and longevity through the lifespan of your build.

RGB Fusion
Illuminate your rig with an abundance of color with RGB Fusion Software. Giving you a variety of effects and colors to choose from, you can easily turn your system into the centerpiece of your gaming room.

Smart Fan 6
Monitor the cooling performance of your build with Smart Fan 6, a free suite dedicated to ensuring your components run properly. Temperature sensors are located around the board, along with hybrid fan headers, giving you optimal control and cooling. When the optimal temperature is met, the fans automatically stop, promoting fan lifespan.

Easy BIOS Update
With GIGABYTE Q-Flash Plus, you can update the BIOS without having to install a CPU, memory, or graphics card. Simply download and save a new BIOS file onto a USB flash drive, then plug it into the designated port before pressing the dedicated Q-Flash Plus button.

B550M DS3H AC R2
