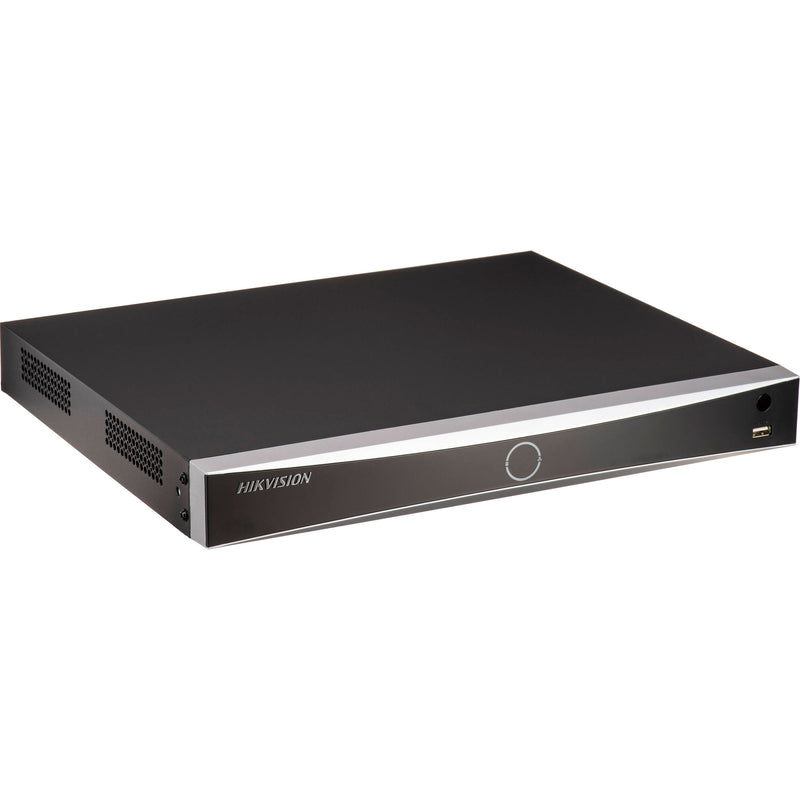

Hikvision AcuSense DS-7608NXI-K2/8P 8-Channel 12MP NVR With 2TB HDD

Record from and manage up to 8 cameras with the AcuSense DS-7608NXI-K2/8P 8-Channel 12MP NVR with 2TB HDD from Hikvision. This NVR supports IP cameras up to 12MP. It is equipped with two SATA ports that each support an HDD up to 10TB, for a maximum capacity of 20TB (2TB preinstalled). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible. AcuSense technology provides vehicle and human detection while filtering out false video content analysis alarms. This NVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor (available separately) at up to 4K UHD resolution. Recording resolution up to 12MP. H.265+, H.265, H.264+, and H.264 video compressions. TLS encryption for secure transmission stream. 1 x VGA and 1 x HDMI outputs. HDD storage expandable to 20TB. 8-channel synchronous playback. 1000M RJ45 self-adaptive Ethernet port. 3 x USB 2.0. 4 x alarm inputs and 1 x alarm output. CE and FCC certified. Smart Functions. Motion Detection 2.0 for accurate human and vehicle analysis (8 channels). Smart search for selected video area. Smart playback improves playback efficiency. Face detection and analytics include: face picture comparison, human face capture, and face picture search. Up to 16 face picture libraries, along with up to 20,000 face pictures in total. 1-channel human face capture. 4-channel face picture comparison alarm. UPC: 842571145021. User Manual. 4.0 MB. Hikvision DS-7608NXI-K2/8P Specs. General. Number of Channels. 8. Playback Resolution. HDMI: 3840 x 2160 at 30 Hz 2560 x 1440 at 60 Hz VGA: 1920 x 1080 at 60 Hz. Recording Resolution. 1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP. Throughput. 80 Mb/s (Incoming)160 Mb/s (Outgoing). IP Camera Support. 8. Decoding Resolution. 1 Channel:12 MP at 30 fps 2 Channels:8 MP, 12 MP at 30 fps 3 Channels:8 MP at 30 fps 4 Channels:4 MP at 30 fps 6 Channels:4 MP at 30 fps 8 Channels:1080p at 30 fps. 2-Way Audio. Yes. Connectivity. A/V I/O. 1 x HDMI1 x VGA1 x RCA Audio Output (2 V p-p, 1 Kilohm)1 x RCA Audio Input (1 Kilohm, Linear). Communication Inputs/Outputs. 1 x RJ45 Gigabit Ethernet8 x RJ45 10/100 Mb/s Ethernet PoE3 x USB-A 2.0. Audio Inputs/Outputs. 1 Input1 Output. System Connection. 2 x SATA. Remote Connections. 128. Network Protocols. DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, TLS, UPnP, iSCSI. Compatibility. Supported Video Codecs. H.264, H.264+, H.265, H.265+. Supported Audio Codecs. AAC, G.711A, G.711U, G.722, G.726. Supported IEEE Standards. 802.3af, 802.3at. Computing. Optical Drive. None. System. Installed Drive. 2 TB Hard Drive. Max Capacity Supported. 10 TB (Each Drive)20 TB (Total). Number of Bays. 2 x Internal. Notifications. Alarm Inputs/Outputs. 4 Inputs1 Output. Event Trigger. Analytics, Motion. System Functions. Search Modes. Smart Search. Recording Modes. Analytics. Fisheye Dewarping. None. Electrical. Power Consumption. 15 W (Without HDD). Power Supply Type. External. PoE Power Budget. 200 W. DC Input Power. 48 VDC at 2.5 A. Environmental. Operating Temperature. 14 to 131°F / -10 to 55°C. Operating Humidity. 10 to 90%. Physical. Built-In Display. None. Certifications. CE, FCC*as per Manufacturer. LED Indicators. Yes. Dimensions (W x D x H). 15.2 x 12.4 x 2.0" / 385.0 x 315.0 x 52.0 mm. Weight. 6.6 lb / 3 kg (Without HDD). Packaging Info. Package Weight. 8.61 lb. Box Dimensions (LxWxH). 17.4 x 15.3 x 5.2". Hikvision DS-7608NXI-K2/8P Reviews. does the job nicely. By marguerite. Rated 5 out of 5. Date: 2022-12-17. After having used programs for years like Zoneminder CCTV and Shinobi CCTV on standard desktop computers, decided to switch full time to a Hikvision DVR. 4 Hikvision cameras at 2MP recording 24/7. The DVR has a nice feature of recognizing people, and not having many false positives due to lighting changes (sun/cloud/etc). With playback, can choose for the DVR to just play back the videos with people. Alerting zones can be set as well. Have a wireless mouse plugged into the unit too. With the cooling fan in the unit (this unit has a power brick outside the unit), don't expect to be putting this DVR in your regular living space. The stock fan (DVR date code August 2022 on box) is quite noisy and the high pitched noise does slightly dissipate with use, but not enough. I have replaced the fan with a Noctua NF-A4x20 FLX (40mm and 12volt). The Noctua package comes with wire connectors to cut and splice to the original NVR fan connector. I also have the fan blowing in, instead of as exhaust, and appears to run slightly cooler when touching the heatsink on the CPU. New Noctua fan is very quiet. Loud fan. Shipment issues. Package was already opened. By Andrew. Rated 3 out of 5. Date: 2022-11-14. The fan is pretty loud. It's a small diameter fan due to case dimensions so it's not surprising there's some noise but additional fans at a lower fan speed might be quieter. I had shipment issues. Not sure if FedEx or BHPhoto was at fault. After 3-4 calls to BHPhoto customer support, BHPhoto shipped a replacement package which arrived on time. The replacement package BHPhoto shipped ended up being already opened. I found clear tape on top of the original sealing tape from Hikvision. Because I had already waited so long for it to arrive, I went ahead and started using the unit. I haven't opened the unit to see if the disk has been swapped by someone else. All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

DS-7608NXI-K2/8P-2TB
