MONOPRICE

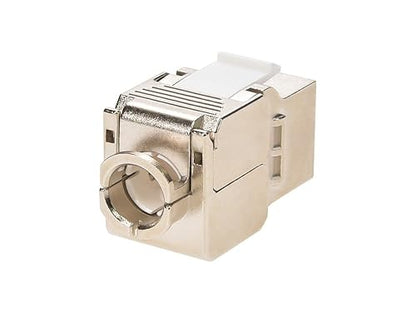

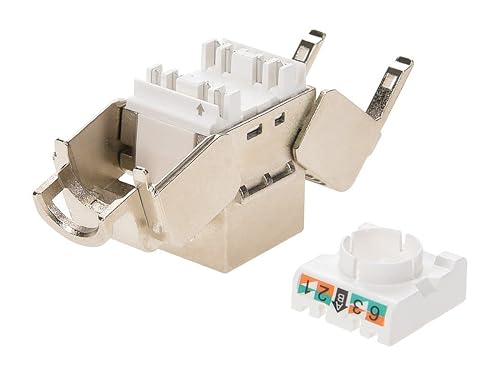

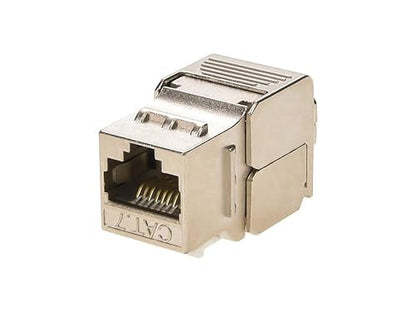

Monoprice Entegrade Series Cat7 or Cat6A RJ-45 Shielded Toolless Keystone Jack, 10 pack

Monoprice Entegrade Series Cat7 or Cat6A RJ-45 Shielded Toolless Keystone Jack, 10 pack

Returns / Exchanges: Sealed Product Only

SKU:889028059029

Regular price $20,282.48 CAD
Regular price $0.00 CAD Sale price $20,282.48 CAD
Sale Sold out
Shipping calculated at checkout.
Cat7 Keystone Module Shielded, tool‑free connection Quick and safe wire terminations without any special punch tools Category 7, Class EA Area of application: Up to 500 MHz, 10GBase‑T Norms: ISO/IEC 11801 2nd Ed., EN 50173‑1, EIA/TIA 568‑C, 802.3af, 802.3at PoE+ Suitable for patch panels and mounting outlets RJ45 female to LSA, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A and B 360° shield coverage Accepts: 22‑24 AWG solid cables (bare conductor diameter from 0.50‑0.58mm, outside diameter from 5.0‑8.5mm) Zinc die‑cast, nickel‑plated RJ45 pin holder: ABS UL® 94V‑0 RJ45 contact: Tinned phosphor bronze with gold‑plating LSA termination clamp: Krone® LSA+, UL 94V‑2, zinc plated phosphor bronze PCB: FR4, UL 94V‑0 Insertion force: 30N max. (IEC 60603‑7‑5) Retention strength: 7.7 kg between jack and plug Operating temperature: ‑20 ~ +70°C (ISO/IEC 11801, EN 50173‑1, ANSI®/TIA/EIA 568 C) Mating cycles female: > 750 according to ISO/IEC 11801, IEC 60603‑7‑5 Clamp: > 200 according to ISO/IEC 11801, IEC 60603‑7‑5 Support Files: Quick Install Guide (Dec 5, 2017) Dimensions Diagram (Apr 22, 2017) Monoprice™, Entegrade™, and all Monoprice logos are trademarks of Monoprice Inc. UL® and the UL logo are registered trademarks of UL LLC. Krone® is a registered trademark of Krone, Inc. ANSI®, the ANSI logo, and numerous other identifiers containing "ANSI" are registered trademarks, service marks, and accreditation marks of the American National Standards Institute (ANSI). Updated Feb
