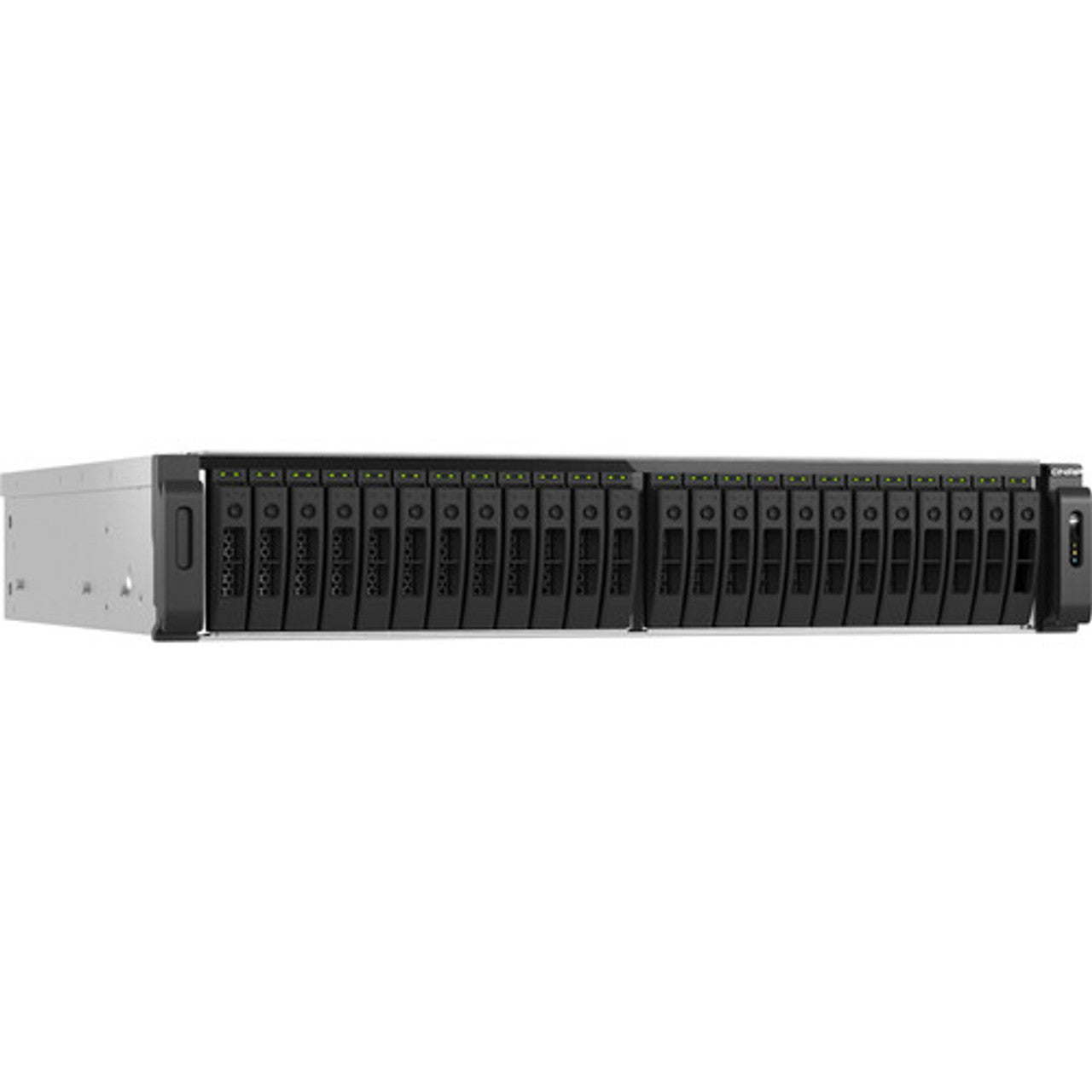

Qnap 2u 30-Bay 2.5 Sata 6gbps All-Flash Nas, Amd Ryzen 7 7000 Series 8c16t (Boost Up To 5.3 Ghz), 64gb Ddr4 Non-Ecc Ram (Up To 128gb), 10gbase-T + 2 - TS-H3077AFU-R7-64G-US

Qnap 2u 30-Bay 2.5 Sata 6gbps All-Flash Nas, Amd Ryzen 7 7000 Series 8c16t (Boost Up To 5.3 Ghz), 64gb Ddr4 Non-Ecc Ram (Up To 128gb), 10gbase-T + 2

Key Features

30 x 2.5" SATA III Drive Bays. AMD Ryzen 7 7000 Series 8-Core CPU. 64GB of DDR5 RAM. 2 x 10GbE | 2 x 2.5GbE. 2 x 10 Gb/s USB-A 3.2 Gen 2 Ports. 1 x PCIe 4.0 x8 | 2 x PCIe 4.0 x4. RAID 0, 1, 5, 6, 10, 50, 60, and JBOD. AES 256-Bit & AES-NI Volume Encryption. Dual Redundant 550W Power Supplies. QTS 5.1.3 Operating System.

Designed for media production companies, enterprises, and science research institutions that require high-performance large-capacity storage for storing records, business assets, Big Data, and virtual machines, theTS-h3077AFU 30-Bay NAS EnclosurefromQNAPis all-flash storage solution that combines ample storage capacity and robust I/O performance. It is well-suited for 4K/8K video workflows, storage centers, and virtualization applications. It is driven by an AMD Ryzen 7 7000 Series 8-Core processor and 64GB of DDR5 memory that may be upgraded to 128GB.

The TS-h3077AFU has thirty 2.5" SATA III drive bays, a 2 RU form factor, two 10GbE ports, and two 2.5GbE ports for fast data connections. Peripherals and external storage drives may be added using the two USB-A 3.2 Gen 2 ports for a maximum throughput of up to 10 Gb/s from compatible devices. Expansions, including 100/25GbE network cards, QM2 cards for an M.2 SSD or 10/2.5GbE connectivity, graphics cards, and more may be installed into the two PCIe 4.0 x8 and one PCIe 4.0 x4 expansion slots.

The TS-h3077AFU runs on the QTS 5.1.3 operating system. Supported RAID modes include RAID 0, 1, 5, 6, 10, 50, and 60, each of which provides redundancy, performance, or a combination of both. For those who do not require a RAID, JBOD and Single are also available, allowing each drive bay to be individually utilized.

The TS-h3077AFU keeps cool using three 120mm system fans and operates using dual redundant 550W power supplies. Included is a 10Gb Ethernet cable, 144 flat head screws for 2.5" drives, and two power cords. Protection is provided by a limited 5-year hardware warranty.

High-Density SATA All-Flash Array Architecture

The TS-h3077AFU offers an affordable all-flash storage solution, combining ample storage capacity and robust I/O performance. It caters to budget-conscious businesses, providing all-flash storage infrastructure capable of efficiently handling a range of demanding, business-critical applications.

Powered by AMD Ryzen 7000 Series Processors

The TS-h3077AFU is armed with enterprise-class AMD Ryzen 7 7000 Series 8-Core processor. The first gen of CPUs on the AMD Socket AM5 platform provides greater performance and power efficiency compared to similar-grade processors.

AMD Radeon Graphics

Integrated AMD Radeon Graphics on the TS-h3077AFU provides energy-efficient, high-quality graphics performance, enabling processing high-resolution videos, photos, and simultaneously running multiple tasks.

DDR5 RAM

DDR5 RAM comes as standard on the TS-h3077AFU to accommodate the increased performance of CPUs. This model comes with 64GB of DDR5 memory, but up to 128GB can be installed to tackle memory-intensive and complex multitasking workloads, and ECC memory is also supported (sold separately). Please note that ECC and non-ECC memory may not be combined.

Designed for Media Production and Enterprises

Expandability is a concept for the TS-h3077AFU. Let's see how the all-flash TS-h3077AFU supercharges your organization in 4K/8K video workflows, storage centers, and virtualization applications.

Flexibly Add Petabyte-Scale Storage Capacity

Use a TS-h3077AFU paired with multiple QNAP TL PCIe interface SATA JBOD expansion enclosures to achieve both breakthrough performance and massive capacity. The TS-h3077AFU supports up to eight 24-bay TL-R2400PES-RP JBOD enclosures, providing a storage capacity of 192 drives.

Upgrade to 100 Gb/s

The TS-h3077AFU empowers your organization with the bandwidth to tackle the most demanding applications, including storage centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission. Utilizing Port Trunking (Link Aggregation) ensures network redundancy to improve fault tolerance.

Streamline Post-Production Workflows

Store your projects on the super-fast TS-h3077AFU. NAS folders can be mounted on Windows or Mac via 25/10 GbE, allowing teams to save time and effort.

Back Up Business-Critical Data

The all-flash TS-h3077AFU delivers low latency and high IOPS performance. The ZFS-based QuTS hero operating system ensures data integrity and reliability while supporting multiple backup solutions.

Virtualization

With ultra-fast DDR5 memory which is optimized for large data processing, the TS-h3077AFU is ideal for server virtualization and virtual desktop infrastructure (VDI) usage.

Long-Term and Stable Supply Available

The TS-h3077AFU will be available until 2030. This long-term availability makes the TS-h3077AFU an ideal choice for organizations requiring matching NAS models for long-term projects.

Get a Secondary Backup to QNAP-Hosted Cloud Storage

Back up NAS data to myQNAPcloud Storage, the perfect partner for QNAP's backup/recovery solutions, including Hybrid Backup Sync. QNAP only charges for storage space, with transmitting data being completely free.

Future-Proof PCIe Gen 4 Slots

The TS-h3077AFU has three PCIe Gen 4 slots for you to add additional functionality (such as 100 GbE connectivity) to meet growing workload and business requirements.

100/25 GbE Network Card

Enable lightning-fast throughput for bandwidth-demanding tasks such as 4K/8K production or virtualization.

QM2 Cards

Adds M.2 SSD or extra 10/2.5" GbE connectivity to the NAS for optimized performance and bandwidth.

Graphics Cards

Supercharge your video editing and transcoding or enable GPU passthrough to virtual machines.

Robust Hardware to Boost SSD Performance

The TS-h3077AFU's high-level hardware with an expandable architecture is designed to maximize SSD performance.

High-Capacity Storage

30 x 2.5" SATA SSD drive bays

Powerful Processor and Memory

4 x UDIMM DDR5 Memory Slots

AMD Ryzen 7 7000 Series 8-Core processor

High-Speed Ethernet

2 x 2.5GbE RJ45 ports

2 x 10GBASE-T ports

Flexible Expansion and Connectivity

2 x 10 Gb/s USB-A 3.2 Gen 2 ports

1 x PCIe 4.0 x8 slot

2 x PCIe 4.0 x4 slots

Others

2 x 500W redundant power supplies

3 x 60mm system cooling fans

ZFS-Based QuTS hero Operating System Enhances NAS Performance and Data Integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data Integrity Is Key

QuTS hero's self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.

Data Reduction Improves Storage Efficiency and Performance

Inline data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance.

Multi-Level Cache Technology

Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power failure protection are supported to boost performance and security.

QSAL (QNAP SSD Antiwear Leveling) Enhances Data Protection

RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.

Inline Data Deduplication, Compression, and Compaction Improve SSD Endurance

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h3077AFU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.

Additional Technologies for Optimizing SSD Performance and Lifespan

Write Coalescing

Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.

Pool Over-Provisioning

Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.

TRIM

Informs SSDs to delete unneeded data blocks and processes deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.

Real-Time SnapSync Ensures Minimal RPO with Real-Time Disaster Recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

The TS-h3077AFU also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.

Snapshots Multiply Backup Protection

Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.

HBS Simplifies 3-2-1 Backup Plans

HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h3077AFU to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.

License-Free VMware and Hyper-V Backup Appliance

With Hyper Data Protector, the TS-h3077AFU becomes an agentless backup tool for VMware vSphere and Microsoft Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling, and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.

Move Business Data to the Cloud and Enjoy Low Latency Access to Cloud-Based Data

The TS-h3077AFU integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible, and secure hybrid cloud applications.

HybridMount File-Based Cloud Gateway

Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud Block-Based Cloud Gateway

VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.

Reliable, High-Performance Storage for Virtualization

The TS-h3077AFU supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.

Build an Affordable Fiber Channel SAN Environment

Common Fiber Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fiber Channel expansion cards in the TS-h3077AFU, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fiber Channel Target using the iSCSI & Fiber Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Limited 5-Year Warranty

The TS-h3077AFU is backed by a limited 5-year warranty at no extra cost. This premier warranty demonstrates QNAP's dedication to your essential business needs for continuous operations and non-interrupted services.

TS-H3077AFU-R7-64G-US
