Siig

SIIG DP CyberSerial 4S PCIe, 16550 UART, Baud Rates up to 921Kbps, PCIe 2.0 x1 to 4X RS-232 Male 9-pin DB9, RS-232 5V or 12V Power, ASIX AX99100 Chipset, Dual-Profile Brackets JJ-E40011-S5

SIIG DP CyberSerial 4S PCIe, 16550 UART, Baud Rates up to 921Kbps, PCIe 2.0 x1 to 4X RS-232 Male 9-pin DB9, RS-232 5V or 12V Power, ASIX AX99100 Chipset, Dual-Profile Brackets JJ-E40011-S5

Returns / Exchanges: Sealed Product Only

SKU:662774043579

Regular price $87.08 CAD
Regular price $0.00 CAD Sale price $87.08 CAD
Sale Sold out
Shipping calculated at checkout.

Specification:

Chipset: ASIX MCS99100
Compliant with PCI Express Base Specification 2.0
Supports PCIe Power Management
Data transfer rate: Up to 921Kbps
Flow control: Hardware and Software
Stop bits: 5, 6, 7, 8 and 9-bit serial format
On-Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
Serial power output: 0V / 5V / 12V, configured by jumper
Form factor: Full profile / Low profile

Product:

Dimensions (with full height bracket): 3.66" (W) x 0.87" (H) x 4.72" (L)
Weight: 0.10 lbs
Color: Green

Connectors:

4 x 9-pin D-sub, RS232 serial, Male (via fan-out cable)

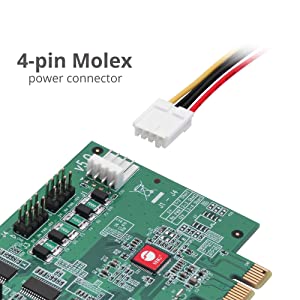

1 x 4-pin, Molex mini-power connector
2 x 8-pin header, a jumper for power output

Environmental conditions:

Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards: FCC, CE, RoHS
Warranty: 3 years limited
Country of origin: Taiwan

Compatibility Note:

Replaces part # JJ-E40011-S4

Requirements

PCI Express-enabled system with an available PCI Express slot
Windows 10 / 8.x / 7
Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008

Package Contents

DP CyberSerial 4S PCIe board
Low profile bracket
4-Port fan-out cable (DFP-36pin)
Y-Split power cable
Voltage jumper (4pcs)
Driver CD
User manual
