AMAZON.CA PRODUCT DESCRIPTION
null
FROM THE MANUFACTURER

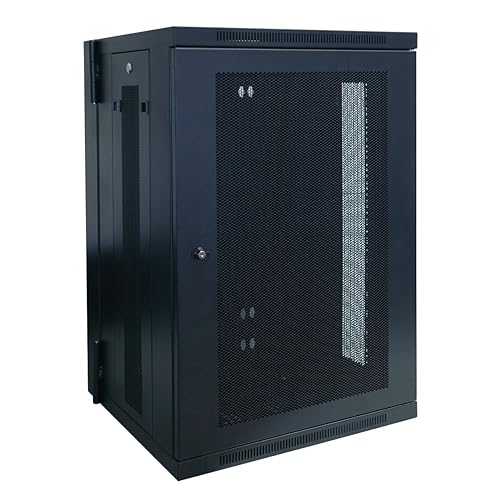

Are you running out of IT floor space? Do you need to accommodate rackmount equipment at a remote location or branch office? Tripp Lite has the solution. Our SRW18US Wall Mount Rack Enclosure Cabinet is the ideal storage solution for standard rackmount equipment in any environment where floor space is limited. With its sturdy wall mount bracket and heavy-duty steel frame, it can accommodate up to 140 lbs. of equipment in 18U of rack space—off the floor! To give you quick, convenient access to rackmounted equipment, the cabinet is hinged to swing away from the wall mount bracket. For additional versatility, an optional Rolling Caster Kit (Model SRCASTER) is available to convert the enclosure to a rollaway floor unit. The SRW18US is packed with premium features designed to simplify rack equipment installations: top and bottom cable routing ports, perforated door and side panels to promote efficient airflow, adjustable vertical mounting rails and more. The SRW18US ships fully assembled for quick installation and comes with a 5-year warranty.
KEY FEATURES
TRIPP LITE'S SRW18US RACK ENCLOSURE OFFERS:
* Premium wall mount rack enclosure cabinet
* 18U of rack space; 140-lb. load capacity
* Hinged to swing away from wall bracket for easy equipment access
* Locking, reversible front door and locking, removable side panels
* 5-year warranty
Supports up to 140 lbs of rack equipment

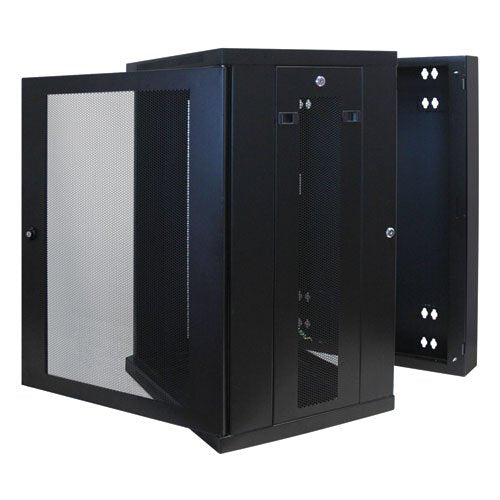

Click here for a larger image Hinged to swing away from wall bracket for easy equipment access
Click here for a larger imageVERSATILE, SPACE-SAVING RACKMOUNT SOLUTION
The SRW18US features a sturdy bracket and heavy-duty steel frame that allows the enclosure to be wall mounted—an ideal rackmount solution for any venue where floor space is limited. The SRW18US can also be configured as a freestanding, rollaway floor unit with Tripp Lite's optional Rolling Caster Kit (Model SRCASTER).
SIMPLE EQUIPMENT INSTALLATION

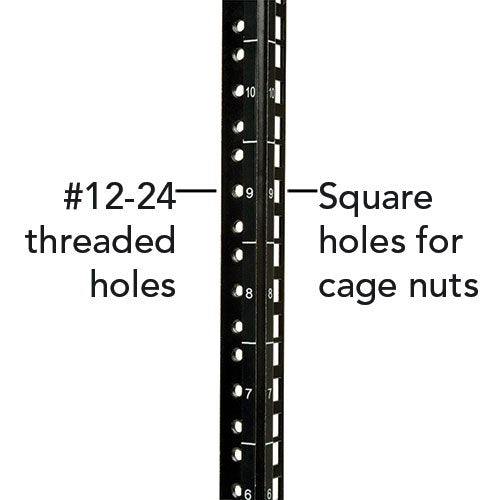

The SRW18US is compatible with all standard 19-inch rack equipment and is designed to simplify equipment installation. It features front and rear pairs of vertical mounting rails that are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 20.5 inches. Adjustment is quick and convenient—simply unscrew the rails, slide them to the desired depth and restore the screws. The rails feature square mounting holes and are capable of supporting up to 140 lbs. equipment with included installation hardware. Each rack space within the enclosure is numbered for easy reference.
CONVENIENT EQUIPMENT STORAGE AND ACCESS IN MINIMAL SPACE
The SRW18US's sturdy wall bracket enables the enclosure to be mounted off the floor, saving valuable space. The bracket features a sturdy hinge that allows the enclosure to swing away from the wall for convenient access to equipment and cabling. The swing direction can be reversed by rotating the enclosure 180 degrees before installation. The wall bracket locks to secure equipment in general-access areas. The lockable front door and lockable, removable side panels assure ease of installation and convenient service access to installed equipment. Both door and side panels are perforated to promote efficient airflow.
VENTED TOP AND BOTTOM PANELS WITH CABLE CUTOUTS
The top and bottom panels of the SRW18US are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans. The top and bottom panels are also provided with ports for cable routing through the movable portion of the enclosure or the fixed wall bracket. Removable covers block unused cable ports.
TECHNICAL SPECIFICATIONS
Click here for a larger image Model: SRW18US Rack spaces: 18 Load capacity: 140 lbs Mounting depth: 3 to 20.5 in. Mounting holes: Square (mounting hardware included Door: Lockable/reversible/perforated Side panels: Lockable/removable/perforated Top & bottom panels: Vented Cable ports: Top and bottom panels (removable covers) Height: 35.6 in. Width: 23.6 in. Depth: 21.6 in. Weight: 96 lbs. Material of construction: Steel Warranty: 5 years ORGANIZE, PROTECT AND CONTROL RACK EQUIPMENT WITH TRIPP LITE
Tripp Lite SmartRack™ Enclosures, UPS Systems, Rackmount Consoles and Rack/Console KVM Switches provide reliable, cost-effective solutions for all rackmount equipment.
SRW10US SMARTRACK™ ENCLOSURE
Premium 10U wall-mountable rack enclosure cabinet with locking, reversible front door and locking, removable side panels. The space-saving SRW10US mounts on a hinged wall bracket that enables the unit to be swung out for easy equipment access. Door and side panels are perforated to provide efficient ventilation; adjustable front and rear vertical rackmount rails facilitate quick, simple equipment installation; 140-lb. load capacity. The SRW10US ships fully assembled and comes with a 5-year warranty. A full range of rackmount accessories is also available.
SRW12US SMARTRACK™ ENCLOSURE
Premium 12U wall-mountable rack enclosure cabinet with locking, reversible front door and locking, removable side panels. The space-saving SRW12US mounts on a hinged wall bracket that enables the unit to be swung out for easy equipment access. Door and side panels are perforated to provide efficient ventilation; adjustable front and rear vertical rackmount rails facilitate quick, simple equipment installation; 140-lb. load capacity. The SRW12US ships fully assembled and comes with a 5-year warranty. A full range of rackmount accessories is also available.
SRW26US SMARTRACK™ ENCLOSURE
Premium 26U wall-mountable rack enclosure cabinet with locking, reversible front door and locking, removable side panels. The space-saving SRW26US mounts on a hinged wall bracket that enables the unit to be swung out for easy equipment access. Door and side panels are perforated to provide efficient ventilation; adjustable front and rear vertical rackmount rails facilitate quick, simple equipment installation; 140-lb. load capacity. The SRW26US ships fully assembled and comes with a 5-year warranty. A full range of rackmount accessories is also available.
SRCASTER HEAVY-DUTY ROLLING CASTER KIT
Converts Tripp Lite Wall Mount Rack Enclosure Cabinets and 4-post open-frame racks to rollaway floor units. Kit includes four heavy-duty casters and all required mounting hardware. 5-year warranty.
SMART1000RM2U SMARTPRO® UPS SYSTEM
Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment. The SMART1000RM2U provides 1000VA/700W power capacity with 6 outlets arranged in 2 load banks. One USB port and one DB9 port with included cables and PowerAlert monitoring software provide complete power network monitoring and control. The SMART1000RM2U supports connected equipment for 17 minutes during power failures at a half load of 350 watts. $250,000 Ultimate Lifetime Insurance; 2-year warranty.
B021-000-17 RACKMOUNT CONSOLE
Provides a complete network control system in just 1U of rack space. The B021-000-17 includes a keyboard, 19-in. LCD screen and touch pad in a 1U slide-out unit, and is compatible with any KVM switch or server equipped with PS/2 connectors. 1-year warranty.
B020-U08-19-K NETDIRECTOR™ CONSOLE KVM SWITCH
Controls an entire network in just 1U of rack space. The B020-U08-19-K combines a keyboard, 19-in. LCD screen, touch pad, numeric keypad, and 8-port KVM switch in a 1U slide-out unit. It is USB or PS/2 compatible with 8 included PS2/USB Combo Cable Kits to connect switch to servers. Controls up to 504 servers by daisy-chaining additional KVMs. Includes two front-mounted USB ports: one for attachment of a separate USB mouse and one to connect USB peripherals (flash drive, external hard drive, etc.) that can be shared between connected servers.
SRW18US
