Tripp Lite

Tripp Lite B020-U08-19-IP 8-Port Console IP KVM Switch 1U RM with 19 -Feet LCD (Black) 8-Port Remote Access

Returns / Exchanges: Sealed Product Only

SKU:037332152886

$3,694.94 CAD

~~$0.00 CAD~~ $3,694.94 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AMAZON.CA PRODUCT DESCRIPTION

null

FROM THE MANUFACTURER

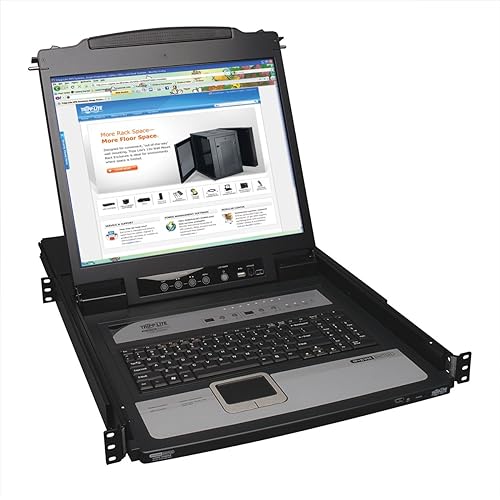

Tripp Lite's B020-U08-19-IP NetDirector� 8-Port Rackmount Console KVM Switch is the smart solution for controlling multiple servers in IT applications. It combines a keyboard, touchpad, 19-in. color LCD and 8-port KVM switch in a 1U rack drawer for compact storage and easy access without compromising control over connected servers. The heavy-duty enclosure, high-quality LCD, premium connectors and uncomplicated controls ensure trouble-free operation in demanding high-availability environments. The B020-U08-19-IP can control eight servers/computers directly, or up to 504 by daisy-chaining additional KVMs. It is compatible with both PS/2 and USB computers using Tripp Lite P778-series combo KVM cable kits (two 6-ft. cable kits included). Built-in IP access capability enables servers/computers to be controlled from any location via LAN, WAN or Internet.

KEY FEATURES

All-in-One Network Management for Critical Systems

Click here for a larger image

Simple, Flexible Network Control

Click here for a larger image

ALL-IN-ONE NETWORK MANAGEMENT FOR CRITICAL SYSTEMS

The B020-U08-19-IP offers a complete network management solution. It combines an 8-port KVM switch, keyboard, touch pad, numeric keypad, 19-in. LCD and built-in IP remote access capability in a compact housing that stores neatly in a 1U rack drawer and pulls out when needed. No server-resident software is required, so server performance and reliability are never compromised. An external USB port, conveniently located on the front of the keyboard panel, enables an optional external mouse to be connected. The B020-U08-19-IP is flash firmware upgradable (firmware upgrade cable included) to ensure compatibility with emerging standards.

SUPPORTS MULTIPLE PLATFORMS

The B020-U08-19-IP supports both PS/2 and USB connections (two Tripp Lite P778-006 combo KVM cable kits included). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. Connect multiple versions of multiple platforms in any combination, including Windows�, Mac�, UNIX�, Linux, and DOS operating systems.

SIMPLE, FLEXIBLE NETWORK CONTROL

The B020-U08-19-IP is designed to ease multi-server management in data centers, server rooms and other high-density environments. BIOS-level access allows network administrators to solve complex problems efficiently and restore service before downtime affects productivity. An advanced on screen display (OSD) with high-resolution VGA video up to 1280 x 1024 provides a graphical user interface with management tools including custom port labeling, auto-scanning and panel array mode. Users may also select a connected computer using on-console pushbuttons or keyboard hotkey commands. Two LEDs per KVM port indicate (1) when a computer is connected to a KVM port and powered on, and (2) when a computer is selected.

CONTROL MULTIPLE SERVERS

The B020-U08-19-IP is capable of controlling up to 504 servers/computers by daisy-chaining additional KVMs (Tripp Lite model B022-U16). This gives network managers the flexibility to add capacity when it's needed, accommodating growing data center requirements without disrupting existing equipment.

B020-U08-19-IP Expansion Diagram

Click here for a larger image

B020-U08-19-IP Access Servers Diagram

Click here for a larger image

ACCESS SERVERS ANYWHERE WITH BUILT-IN IP REMOTE ACCESS CAPABILITY

The B020-U08-19-IP provides secure IP remote access to connected servers/computers via LAN, WAN or Internet without requiring additional rack space. IP remote access enables system administration, BIOS-level troubleshooting, GUI application installations, equipment reboots and more to be accomplished from any location using a standard Web browser or multi-platform client software. Dual bus support permits simultaneous access for one local and one remote user. The LCD incorporates a grayscale option to improve transfer speed in low bandwidth situations.

SECURE EVERY CONNECTION

The B020-U08-19-IP offers three levels of password protection (administrator/user/select) to prevent unauthorized persons from gaining access to connected servers/computers. IP remote access is further protected with security features including password protection, advanced encryption, bandwidth-optimized video and detailed activity logging. Up to 64 user accounts can be created. A message board feature allows logged-in users to communicate with one other and manage port access.

ADDITIONAL KVM ACCESSORIES (SOLD SEPARATELY)

To connect servers/computers to the KVM: one P778-Series PS/2+USB combo KVM cable kit per server/computer is required (two cable kits included; see below). To daisy-chain from the B020-U08-19-IP: additional B022-U16 KVM switches and cable kits; consult the owner's manual for detailed information about daisy-chain configurations.

TECHNICAL SPECIFICATIONS

TRIPP LITE B020-U08-19-IP NETDIRECTOR� 16-PORT RACKMOUNT CONSOLE KVM SWITCH

Click here for a larger image

WHAT'S IN THE BOX

* B020-U08-19-IP Rackmount Console KVM Switch

* 2 x 6-ft. PS/2+USB Combo KVM Cable Kits (Tripp Lite model P778-006)

* 1 x Combo Console Cable Kit (USB+PS/2)

* 1 x RJ11 to DB9 Firmware Upgrade Cable

* 1 x 6-ft. C13 to 5-15P Power Cord

* Rackmounting Hardware & Grounding Wire

* Owner's Manual CD & Quick Start Guide

NETWORK CONTROL SOLUTIONS FROM TRIPP LITE

Tripp Lite UPS offers a wide range of products to provide reliable, cost-effective network control solutions for network data centers and other IT applications.

P778-SERIES USB+PS/2 COMBO KVM CABLE KITS

Connect a USB or PS/2 server/computer to a Tripp Lite KVM switch. Combines USB and PS/2 keyboard/mouse cables and a monitor cable bonded into a single unit. Available in 6-, 10- and 15-ft. lengths.

P778-006 � P778-010

The above cable kits are compatible with the following Tripp Lite KVM switches:

B020-U08-19-K � B020-U16-19-K � B022-U16

B020-016-17-IP NETDIRECTOR� RACKMOUNT CONSOLE KVM SWITCH

Controls an entire network in just 1U of rack space. The B020-016-17-IP combines a keyboard, touchpad, 17-in. color LCD and 16-port KVM switch in a 1U slide-out rack drawer. Compatible with PS/2 and USB servers/computers. Built-in IP capability provides network access for one local and one remote user. Simple port switching via on-screen display (OSD) or keyboard hot keys. Can directly control 16 servers/computers or up to 256 by cascading additional B022-U16 Rackmount KVM switches. Includes two 6-ft. PS/2 KVM cable kits. 1-year warranty.

B022-U16 NETDIRECTOR� RACKMOUNT KVM SWITCH

Controls an entire network in just 1U of rack space. The B022-U16 can directly control 16 servers/computers from a single console. Compatible with PS/2 and USB servers/computers. Simple port switching via on-screen display (OSD) or keyboard hot keys. Multiple B022-U16 units can be daisy-chained from compatible Tripp Lite rackmount console KVM switches to control up to 512 servers/computers. Includes two USB+PS2 combo KVM cable kits and rackmounting hardware. 1-year warranty.

B019-000 2-POST RACKMOUNT BRACKET

Mounts a console or console KVM switches to a 2-post rack, allowing the console to be opened with the drawer in any position. Heavy-duty 14-gauge steel construction provides stability and prevents console frame from twisting. Easy installation; all required hardware included. Compatible with Tripp Lite B020-, B021-, B040-, and B070- series rackmount consoles and rackmount console KVM switches.

SR42UB SMARTRACK� ENCLOSURE

Premium 42U rack enclosure with doors and side panels. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. The SR42UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

SMART2200RMXL2U SMARTPRO� UPS SYSTEM

Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment in 2U of rack space. The SMART2200RMXL2U provides 2200VA/1600W power capacity with 8 outlets including 3 outlets that are individually controllable for remote equipment reboots or load shedding. USB and DB9 ports, an SNMP accessory slot and PowerAlert monitoring software provide complete power network monitoring and control. The SMART2200RMXL2U supports connected equipment for 16 minutes during power failures at a half load of 800 watts. Runtime is expandable with optional external battery packs, sold separately. $250,000 Ultimate Lifetime Insurance; 2-year warranty.

B020-U08-19-IP
