TRIPP LITE

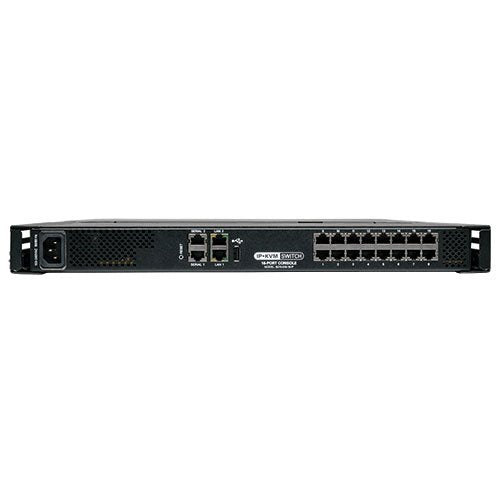

Tripp Lite B070-016-19-IP 16PORT CAT5 Ip KVM Switch 19IN Console Rackmount 1U

Returns / Exchanges: Sealed Product Only

SKU:037332140326

$2,507.10 CAD

~~$0.00 CAD~~ $2,507.10 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AMAZON.CA PRODUCT DESCRIPTION

null

FROM THE MANUFACTURER

Tripp Lite's B070-016-19-IP NetCommander� 16-Port Rackmount Console Cat5 KVM Switch is the smart solution for controlling multiple computers and servers in IT applications. It combines a keyboard, touchpad, 19-in. color LCD and 16-port KVM switch in a 1U rack drawer for compact storage and easy access without compromising control over connected servers. The heavy-duty enclosure, high-quality LCD, premium connectors and uncomplicated controls ensure trouble-free operation in demanding high-availability environments. The B070-016-19-IP can control sixteen servers/computers directly, or up to 256 by cascading additional KVM switches. It is compatible with both PS/2 and USB computers using Tripp Lite B078-101-series server interface units and inexpensive Cat5 patch cables (available separately). Built-in IP access capability enables servers/computers to be controlled from any location via LAN, WAN or Internet.

KEY FEATURES

All-in-One Network Management for Critical Systems

Click here for a larger image

Simple, Flexible Network Control

Click here for a larger image

ALL-IN-ONE NETWORK MANAGEMENT FOR CRITICAL SYSTEMS

The B070-016-19-IP offers a complete network management solution. It combines a 16-port KVM switch, keyboard, touch pad, numeric keypad, 19-in. LCD and built-in IP remote access capability in a compact housing that stores neatly in a 1U rack drawer and pulls out when needed. No server-resident software is required, so server performance and reliability are never compromised. Upgradable firmware fine-tunes compatibility with emerging standards.

SUPPORTS MULTIPLE PLATFORMS

The B070-016-19-IP supports both PS/2 and USB connections using B078-101-series USB or PS/2 server interface units and inexpensive, readily available Cat5 patch cables. Connected computers/servers can be located up to 100 feet from the switch. Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. Connect multiple versions of multiple platforms in any combination, including Windows�, Mac�, UNIX�, Linux, and DOS operating systems.

SIMPLE, FLEXIBLE NETWORK CONTROL

The B070-016-19-IP is designed to ease multi-server management in data centers, server rooms and other high-density environments. BIOS-level access allows network administrators to solve complex problems efficiently and restore service before downtime affects productivity. An advanced on screen display (OSD) with high-resolution VGA video up to 1280 x 1024 provides a graphical user interface with management tools including custom port labeling, auto-scanning and panel array mode. Users may also select a connected computer using on-console pushbuttons or keyboard hotkey commands. Two LEDs per KVM port indicate (1) when a computer is connected to a KVM port and powered on, and (2) when a computer is selected.

CONTROL MULTIPLE COMPUTERS

The B070-016-19-IP is capable of controlling up to 256 servers/computers by cascading additional Tripp Lite B072-series KVM switches. This gives network managers the flexibility to add capacity when it's needed, accommodating growing data center requirements without disrupting existing equipment.

B070-016-19-IP Expansion Diagram

Click here for a larger image

B070-016-19-IP Access Servers Diagram

Click here for a larger image

ACCESS SERVERS ANYWHERE WITH BUILT-IN IP REMOTE ACCESS CAPABILITY

The B070-016-19-IP provides secure IP remote access to connected servers/computers without requiring additional rack space. IP remote access enables system administration, BIOS-level troubleshooting, GUI application installations, equipment reboots and more to be accomplished from any location using a standard Web browser or multi-platform client software. Dual bus support permits simultaneous access for one local and one remote user. The LCD incorporates a grayscale option to improve transfer speed in low bandwidth situations.

SECURE EVERY CONNECTION

The B070-016-19-IP offers two levels of password protection (administrator/user) to prevent unauthorized persons from gaining access to connected servers/computers. IP remote access is further protected with security features including password protection, advanced encryption, bandwidth-optimized video and detailed activity logging.

PEACE OF MIND

The B070-016-19-IP comes with a one-year warranty.

ADDITIONAL KVM ACCESSORIES (SOLD SEPARATELY)

To connect servers/computers to the KVM: one Tripp Lite B078-101-series server interface unit and one Cat5 patch cable per server/computer are required (see below). To cascade from the B070-016-19-IP: additional B072-008-1 or B072-016-1 KVM switches, server interface units and Cat5 cables; consult the owner's manual for detailed information about cascade configurations.

* Mac not supported over IP.

TECHNICAL SPECIFICATIONS

TRIPP LITE B070-016-19-IP NETCOMMANDER� 16-PORT RACKMOUNT CONSOLE KVM SWITCH

Click here for a larger image

WHAT'S IN THE BOX

* B070-016-19-IP Rackmount Console Cat5 KVM Switch

* 1 x KVM/Console Jumper Cable

* 1 x RJ11 to DB9 Firmware Upgrade Cable

* 1 x 6-ft. C13 to 5-15P Power Cord

* Rackmounting Hardware

* Owner's Manual CD

NETWORK CONTROL SOLUTIONS FROM TRIPP LITE

Tripp Lite UPS offers a wide range of products to provide reliable, cost-effective network control solutions for network data centers and other IT applications.

P078-101-SERIES SERVER INTERFACE UNITS

Connect a USB or PS/2 server/computer to a Tripp Lite B070- or B072-series KVM switch utilizing inexpensive Cat6/Cat5eCat5 cabling (available separately). Eliminate the need for bulky KVM cable kits and enable the KVM to be located up to 100 feet from connected servers/computers. Require no special software or external power supply.

B078-101-USB � B078-101-PS/2

These server interface modules are compatible with all Tripp Lite B070- and B072-series KVM switches.

N105-SERIES CAT5E 350MHZ MOLDED SHIELDED PATCH CABLES (RJ45 M/M)�GRAY

Premium Cat5 cables protect against EMI/RFI interference in network environments. Shielded RJ45 connectors with 50-micron gold-plated contacts; 4-pair 24 AWG stranded STP with drain wire. Rated for 350MHz/1Gbps communication. Molded boot for extra strain relief and durability. TIA/EIA and UL certified. Available in 7-, 10, 25-, 50- and 100-ft. lengths. Lifetime warranty.

N105-007-GY � N105-010-GY � N105-025-GY � N105-050-GY � N105-100-GY

Wide selection of Cat5 cables in other colors and lengths available.

B072-016-1 16-PORT RACKMOUNT KVM SWITCH

Controls an entire network in just 1U of rack space. The B072-016-1 can directly control 16 servers/computers from a single console. Compatible with USB and PS/2 servers/computers using B078-101-series interface modules and inexpensive Cat5 patch cables. Simple port switching via on-screen display (OSD) or keyboard hot keys. Multiple B072-series units can be cascaded to control up to 256 servers/computers. Can be cascaded from a B070-series console KVM switch. 1-year warranty.

B019-000 2-POST RACKMOUNT BRACKET

Mounts a console or console KVM switches to a 2-post rack, allowing the console to be opened with the drawer in any position. Heavy-duty 14-gauge steel construction provides stability and prevents console frame from twisting. Easy installation; all required hardware included. Compatible with Tripp Lite B020-, B021-, B040-, and B070-series rackmount consoles and rackmount console KVM switches.

SR42UB SMARTRACK� ENCLOSURE

Premium 42U rack enclosure with doors and side panels. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. The SR42UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

SMART2200RMXL2U SMARTPRO� UPS SYSTEM

Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment in 2U of rack space. The SMART2200RMXL2U provides 2200VA/1600W power capacity with 8 outlets including 3 outlets that are individually controllable for remote equipment reboots or load shedding. USB and DB9 ports, an SNMP accessory slot and PowerAlert monitoring software provide complete power network monitoring and control. The SMART2200RMXL2U supports connected equipment for 16 minutes during power failures at a half load of 800 watts. Runtime is expandable with optional external battery packs, sold separately. $250,000 Ultimate Lifetime Insurance; 2-year warranty.
