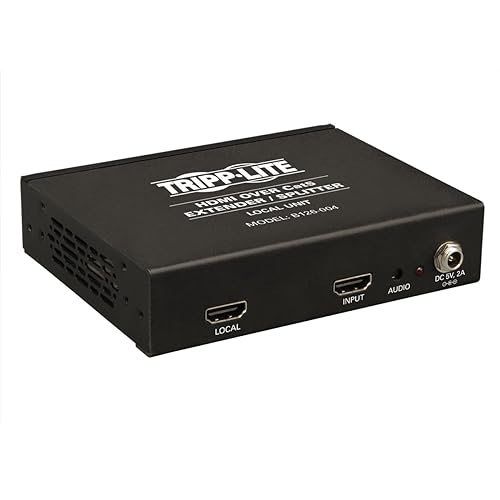

Tripp Lite B126-004 4-Port HDMI Over Cat5 Extender/Splitter TAA/GSA (Black ) 4 Port Transmitter

AMAZON.CA PRODUCT DESCRIPTION

null

FROM THE MANUFACTURER

Spread your message far and wide—extend an HDMI signal up to 200 feet on up to 13 different monitors! By daisychaining up to three units, this Tripp Lite 4-Port HDMI over Cat5/6 Extender/Splitter delivers peak video performance by HDMI-enabled digital video components across as many as 13 monitors, assuring that you enjoy the crystal-clear picture and full, rich sound that you paid for. When used with an active remote unit (B126-1A0 or B126-1A0-WP), the B126-004 can extend a 1080i (60Hz) signal up to 200 ft. and a 1080p (60Hz) signal up to 150 ft. Using a passive remote unit (B126-1P0 or B126-1P0-WP) still delivers premium performance by extending a 1080i (60Hz) signal up to 100 ft. and a 1080p (60Hz) signal up to 50 ft. The included hardware provides you with a variety of installation options and the plug-and-play convenience makes for an easy, efficient setup.

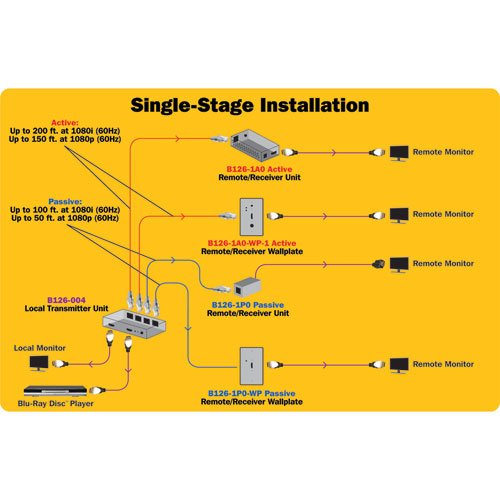

The Smart Solution for Digital Signage Applications

Click here for a larger image

Convenient Plug-and-Play Setup

Click here for a larger image

KEY FEATURES

THE SMART SOLUTION FOR DIGITAL SIGNAGE APPLICATIONS

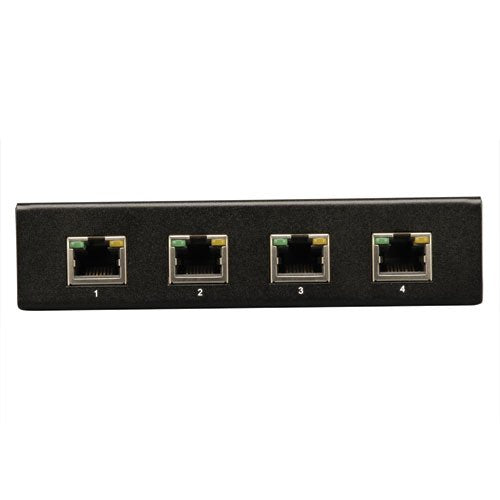

The B126-004 splits a single HDMI signal into 5 separate (1 local, 4 remote) signals, making it the ideal solution for digital signage applications requiring many displays connected to one source, ranging from retail and point-of-sale displays to trade show presentations. By daisychaining three units together, you can connect up to 13 monitors (1 local, 12 remote) to a single video source. The B126-004 allows for the video source to be in a secure, remote location for controlled access while still delivering signal to devices in another area.

GREATER DISTANCE—GREATER FLEXIBILITY

This Tripp Lite 4-Port HDMI over Cat5/6 Extender/Splitter allows extension of an HDMI signal beyond the 15-ft. (5-meter) distance limitation. The B126-004 can extend a 1080i (60Hz) resolution up to 200 ft. and a 1080p (60Hz) resolution up to 150 ft. when used with an active remove unit (B126-1A0 or B126-1A0-WP). When used with a passive remote unit (B126-1P0 or B126-1P0-WP), it can extend a 1080i (60Hz) resolution up to 100 ft. and a 1080p (60Hz) resolution up to 50 ft. And, we haven't forgotten the sound! The B126-004 is compatible with both stereo and 7.1 channel surround sound audio delivering premium sound quality to every point of your application. For maximum distance performance, always use 24 Awg Solid Wire Cat5e/6 cable (Tripp Lite N202-series).

CONVENIENT PLUG-AND-PLAY SETUP

With no software or drivers to install, the B126-004's plug-and-play setup gets your application up and running faster. Simply connect the unit to the video source and remote receiver, connect the remote receiver to the HD display and watch as the B126-004 provides crystal clear resolution. The B126-004 is compatible with all HDMI video sources and all computer operating systems.

VERSATILE INSTALLATION OPTIONS

The B126-004 includes mounting hardware enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount.

ENVIRONMENTALLY RESPONSIBLE

The B126-004 features a green, RoHS-compliant design that is also TAA-compliant for GSA schedule purchases.

TECHNICAL SPECIFICATIONS

TRIPP LITE B126-004 4-PORT HDMI OVER CAT5/6 EXTENDER/SPLITTER

Click here for a larger image

Click here for a larger image

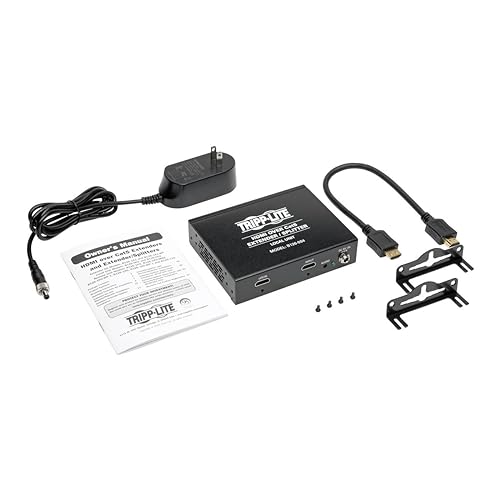

WHAT'S IN THE BOX

* B126-004 HDMI Over Cat5 Extender/Splitter, 4-Port

* 1-ft. HDMI Daisychain Cable

* Mounting Hardware

* External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)

* Owner's Manual

TRIPP LITE CONNECTS ALL YOUR ELECTRONICS

B126-1A0 HDMI OVER CAT5 ACTIVE EXTENDER REMOTE UNIT

This HDMI Over Cat5 Active Extender Remote Unit extends an HDMI signal up to 200 ft. at 1080i (60Hz), or, up to 150 ft. at 1080p. It can be used with B126-002 (2-Port) and B126-004 (4-Port) Extender/Splitter local units for providing high-quality video and sound for all applications. Equalization is built-in to the unit, allowing for adjustment of the video image. For maximum distance and signal quality, always use with 24Awg Solid Wire Cat5e/6 cable (Tripp Lite N202-series). The unit has wall-mount, rackmount and pole mount installation options. No software or drivers to install. 1-year limited warranty.

B126-1A0-WP HDMI OVER CAT5 ACTIVE EXTENDER REMOTE WALLPLATE

This HDMI Over Cat5 Active Extender Remote Unit extends an HDMI signal up to 200 ft. at 1080i (60Hz), or, up to 150 ft. at 1080p. It can be used with B126-002 (2-Port) and B126-004 (4-Port) Extender/Splitter local units for providing high-quality video and sound for all applications. Equalization is built-in to the unit, allowing for adjustment of the video image. For maximum distance and signal quality, always use with 24Awg Solid Wire Cat5e/6 cable (Tripp Lite N202-series). The B126-1A0-WP must be wall-mounted. No software or drivers to install. 1-year limited warranty.

B126-1P0 HDMI OVER CAT5 PASSIVE EXTENDER REMOTE UNIT

This HDMI Over Cat5 Active Passive Remote Unit extends an HDMI signal up to 100 ft. at 1080i (60Hz), or, up to 50 ft. at 1080p. It can be used with B126-002 (2-Port) and B126-004 (4-Port) Extender/Splitter local units for providing high-quality video and sound for all applications. For maximum distance and signal quality, always use with 24Awg Solid Wire Cat5e/6 cable (Tripp Lite N202-series). No software or drivers to install. 1-year limited warranty.

B126-1P0-WP HDMI OVER CAT5 PASSIVE EXTENDER REMOTE WALLPLATE

This HDMI Over Cat5 Active Passive Remote Unit extends an HDMI signal up to 100 ft. at 1080i (60Hz), or, up to 50 ft. at 1080p. It can be used with B126-002 (2-Port) and B126-004 (4-Port) Extender/Splitter local units for providing high-quality video and sound for all applications. For maximum distance and signal quality, always use with 24Awg Solid Wire Cat5e/6 cable (Tripp Lite N202-series). B126-1P0-WP must be wall-mounted. No software or drivers to install. 1-year limited warranty.

N202-075-BL CAT6 GIGABIT SOLID CONDUCTOR SNAGLESS PATCH CABLE (RJ45 M/M)—75 FT.

Tripp Lite's Solid Conductor 4-pair Cat6 patch cables are ideal for long Ethernet patch cable runs, as well as for use with Tripp Lite's HDMI-over-Cat6 audio/video products. Solid conductor wire has a lower DC resistance, allowing signals to run farther and stronger than stranded conductor patch cables. Unique, snagless boot protects the RJ45 locking tab during cable pulls, yet easily disconnects from attached equipment. Lifetime warranty.

B126-002 HDMI OVER CAT5 EXTENDER/SPLITTER, 2-PORT

This Tripp Lite 2-Port HDMI Over Cat5/6 Extender/Splitter splits a single HDMI signal into 2 separate outgoing signals. When used with an active remote unit (B126-1A0 or B126-1A0-WP), the B126-002 can extend a 1080i (60Hz) signal up to 200 ft. and a 1080p (60Hz) signal up to 150 ft. Using a passive remote unit (B126-004 or B126-004-WP) still delivers premium performance by extending a 1080i (60Hz) signal up to 100 ft. and a 1080p (60Hz) signal up to 50 ft. The unit has wall-mount, rackmount and pole mount installation options. No software or drivers to install. 1-year limited warranty.
