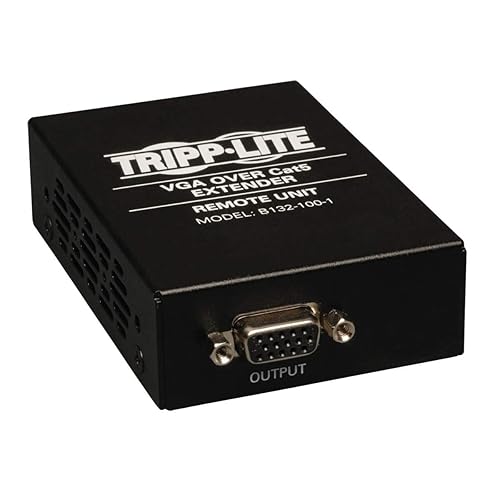

Ensure clear video transmission at distances of up to 1000 feet! The B132-100-1 VGA Over Cat5 Receiver is the ideal solution for digital signage applications that require long distance transmission and uncompromising video quality. It works with a B132-002-1 or B132-004-1 local unit to extend a VGA video signal over long distances. It features built-in Equalization and Gain controls for adjusting the video image. Mounting hardware is included to support multiple installation options. An AC power supply is included for powering the device.
FEATURE FOCUS
The Smart Solution for Digital Signage Applications
Click here for a larger image
VGA Ports
Click here for a larger image
THE SMART SOLUTION FOR DIGITAL SIGNAGE APPLICATIONS
The B132-100-1 enables the video source to be installed in a secure, remote location for controlled access. It can be used to connect display devices with VGA ports, such as DTVs, plasma displays, LCD TVs and projectors, to VGA video sources, such as computers, video cards and AV receivers.
GREATER DISTANCE�GREATER FLEXIBILITY
This genuine Tripp Lite VGA Over Cat5 Receiver works with a B132-002-1 or B132-004-1 local unit to extend a VGA video signal beyond the average 100-ft. distance limitation. The B132-100-1 can extend a 1024 x 768 (60 Hz) signal up to 1000 feet when using 24Awg Solid Wire Cat5e/6 cable (Tripp Lite N202-series), and supports a maximum resolution of 1920 x 1440 (60 Hz). For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K.
SUPERIOR QUALITY ASSURES ERROR-FREE SIGNAL TRANSFER

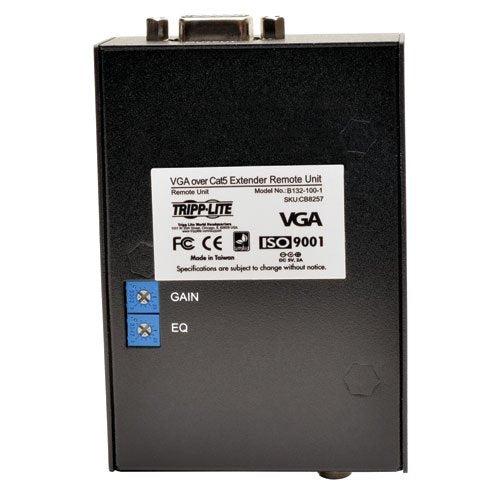

The B132-100-1 Receiver is manufactured using top-quality materials. Plus, built-in equalization and gain controls allow the video image to be adjusted for optimal quality. It is also compliant with RoHS (Reduction of Hazardous Substances) standards, reflecting Tripp Lite's commitment to environmental responsibility.
VERSATILE INSTALLATION OPTIONS
The B132-100-1 Receiver includes mounting hardware that enables it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount.
PEACE OF MIND
1-year limited warranty.
Extend a VGA Signal Up to 1000 ft.
Click here for a larger image
TECHNICAL SPECIFICATIONS
Click here for a larger image

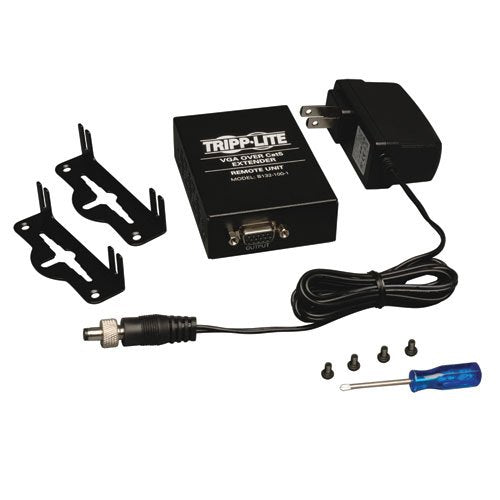

WHAT'S IN THE BOX
* B132-100-1 Receiver
* Mini-Screwdriver for EQ/gain adjustment
* Mounting Hardware

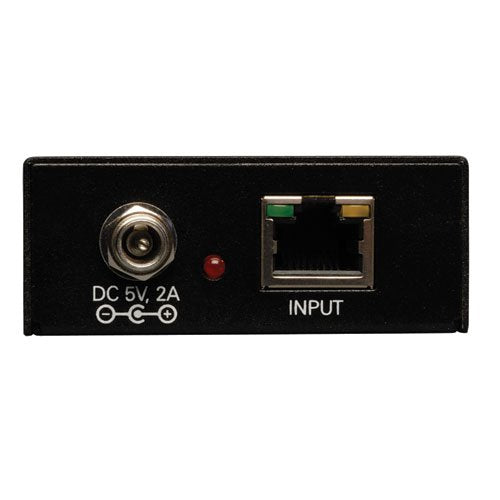

* External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
* Owner's Manual
TRIPP LITE CONNECTS ALL YOUR ELECTRONICS
B132-002-1 2-PORT VGA OVER CAT5 TRANSMITTER
Ideal for digital signage solutions. Splits a single VGA video signal into 2, and when used with B132-100-1 or B132-100-WP-1 remote units, extends the signal up to 1,000 feet from the source. Includes an external power supply and mounting hardware. 1-year warranty.
B132-004-1 4-PORT VGA OVER CAT5 TRANSMITTER
Ideal for digital signage solutions. Splits a single VGA video signal into 5 (1 local, 4 remote), and when used with B132-100-1 or B132-100-WP-1 remote units, extends the signal up to 1,000 feet from the source. Increase the number of displays by up to 25 (1 local, 24 remote) by daisychaining up to six B132-004-1 units together. Includes an external power supply, a VGA daisychain cable, and mounting hardware. 1-year warranty.
N202-050-BL CAT6 GIGABIT SOLID CONDUCTOR SNAGLESS PATCH CABLE (RJ45 M/M)�50 FT.
Tripp Lite's Solid Conductor 4-pair Cat6 patch cables are ideal for long Ethernet patch cable runs, as well as for use with Tripp Lite's HDMI-over-Cat6 audio/video products. Solid conductor wire has a lower DC resistance, allowing signals to run farther and stronger than stranded conductor patch cables. Unique, snagless boot protects the RJ45 locking tab during cable pulls, yet easily disconnects from attached equipment. Lifetime warranty.
P502-006 GOLD SVGA/VGA MONITOR CABLE (HD15 M/M)�6 FT.
Premium double-shielded cable for maximum EMI/RFI protection and superior signal quality. High-density DB15 male connectors are gold plated for superior conductivity. For use with monitors that feature a removable cable. Lifetime warranty.
B132-100-WP-1 VGA OVER CAT5 WALLPLATE RECEIVER
Ideal for digital signage solutions. Works with a B132-002A or B132-004A local unit to extend a VGA video signal up to 1,000 feet from the source. Includes an external power supply, a mini-screwdriver for EQ/gain adjustment, and installation hardware. 1-year warranty.
B130-101-WP-1 VGA OVER CAT5 EXTENDER WALLPLATE KIT (TRANSMITTER + RECEIVER)
Enables a VGA monitor and a serial device to be connected to a computer up to 1000 ft. away using standard Cat5e/Cat6 cable. Includes transmitter and receiver wallplates, a power supply and installation hardware for each, plus a VGA Y-splitter cable for connection of a local monitor. 1-year warranty.
