Don't let distance make your application fizzle—extend a DVI signal up to 200 feet! This Tripp Lite DVI over Cat5/6 Extender Remote Unit delivers peak video performance by DVI-enabled digital video components, assuring that you enjoy the crystal-clear picture and full, rich sound that you paid for. The B140-1A0 is an active remote extender unit for use with Tripp Lite's B140-002 and B140-004 DVI Extender/Splitter units. It allows the extension of a DVI signal up to 200 ft. at 1024 x 768 (60Hz), or up to 150 ft. at 1920 x 1080 (60Hz) when using 24 AWG Solid-Wire Cat5e/6 cabling (Tripp Lite N202-series). The included hardware provides you with a variety of installation options and the plug-and-play convenience makes for an easy, efficient setup. The B140-1A0 features a green, RoHS-compliant design that is also TAA-compliant for GSA schedule purchases.
KEY FEATURES
TRIPP LITE'S B140-1A0 DVI OVER CAT5E/6 ACTIVE EXTENDER REMOTE UNIT:
* Ideal for digital signage applications employing DVI cables and equipment
* Vital, cost-effective part of any long-distance, DVI installation
* Built-in image equalization
* Plug-and-play—no drivers required
* Versatile installation with rack, wall and pole mount options
* Environmentally responsible RoHS and TAA-compliant design
The Smart Solution for Digital Signage Applications
Click here for a larger image Receive and Extend a DVI Signal Over Cat5e/6 Cabling
Click here for a larger image Built-In Image Equalization
Click here for a larger imageTHE SMART SOLUTION FOR DIGITAL SIGNAGE APPLICATIONS
The B140-1A0 extends a DVI signal up to 200 ft., making it the ideal solution for digital signage applications requiring greater distance between the video source and monitors, ranging from retail and point-of-sale displays to trade show presentations. The B140-1A0 allows the video source to be in a secure, remote location for controlled access while still delivering a signal to devices in another area. The B140-1A0 should be used as a remote unit in an installation starting with Tripp Lite's B140-002 or B140-004 DVI splitters. The unit receives the signal from the splitter and extends it even further for added convenience.
GREATER DISTANCE—GREATER FLEXIBILITY
This Tripp Lite DVI over Cat5 Active Extender Unit allows extension of a high-quality DVI signal beyond standard DVI cable lengths. The B140-1A0 can extend a 1024 x 768 (60Hz) resolution up to 200 ft. and a 1920 x 1080 (60Hz) resolution up to 150 ft. when used with a B140-series Tripp Lite DVI splitter. For maximum distance performance, always use 24 AWG Solid Wire Cat5e/6 cable (Tripp Lite N202-series).
BUILT-IN IMAGE EQUALIZATION

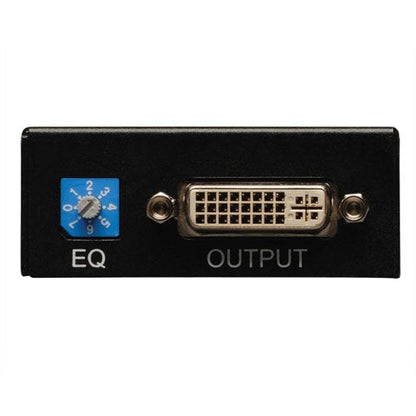

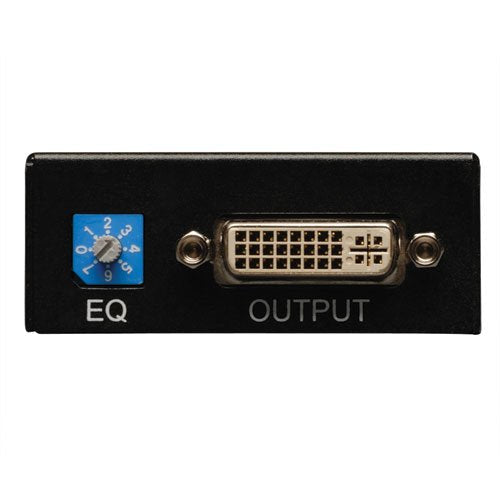

The B140-1A0 features built-in image equalization, allowing you to control the way the image appears on your remote display. There are seven equalization settings and the unit comes with a screwdriver for easy and convenient adjustment.
CONVENIENT PLUG-AND-PLAY SETUP
With no software or drivers to install, the B140-1A0's plug-and-play setup gets your application up and running faster. Simply plug in the unit's external power supply, connect unit to a Tripp Lite B140-series splitter and the remote display and watch as the B140-1A0 provides crystal-clear resolution. The unit is compatible with all DVI video sources and operating systems.
VERSATILE INSTALLATION OPTIONS
The B140-1A0 includes mounting hardware, enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount.
ENVIRONMENTALLY RESPONSIBLE
The B140-1A0 features a green, RoHS-compliant design that is also TAA-compliant for GSA schedule purchases.
ABOUT TRIPP LITE
Outstanding product reliability and exceptional service have been Tripp Lite trademarks for 90 years. Tripp Lite's innovations include the world's first UPS system designed specifically for personal computers, and the world's most trusted premium surge suppressor—the Isobar®—with more than 19 million in use. Tripp Lite maintains the highest level of ready-to-ship inventory in the industry with more than 2,500 different products, including UPS systems, rack systems and cooling solutions, PDUs, PowerAlert software for enterprise-level system management and control, surge suppressors, KVM switches, cables and connectivity products, inverters, power strips and notebook accessories. Headquartered in Chicago, Illinois, Tripp Lite maintains a global presence with fully staffed offices worldwide.
TECHNICAL SPECIFICATIONS

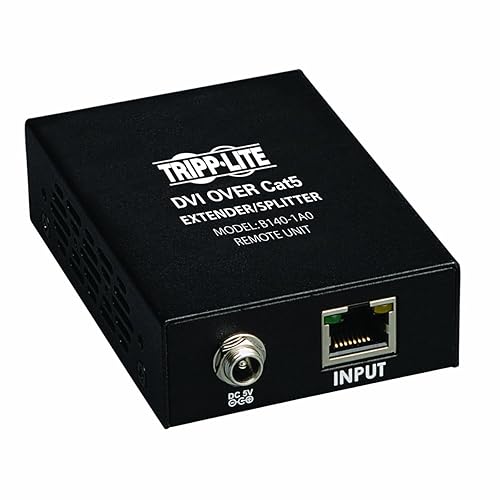

Click here for a larger image Tripp Lite's B140-1A0 DVI over Cat5e/6 Active Extender Remote Unit Type: DVI over Cat5e/6 Active Extender Remote Unit Connectors: 1 x DVI Female

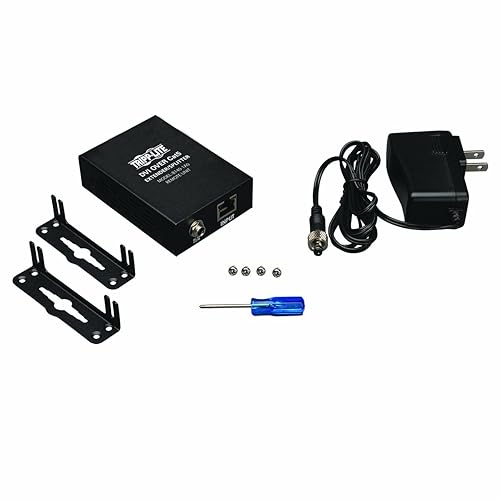

1 x RJ45 Female Housing: Metal Resolution/Range: Active remote: 1024 x 768 (60Hz)/200 ft.; 1920 x 1080 (60Hz)/150 ft. Certifications: RoHS, TAA, CE, FCC Warranty: 1 year WHAT'S IN THE BOX
* B140-1A0 DVI over Cat5 Active Extender Remote Unit
* Mounting Hardware
* Screwdriver for Adjustment of Equalization
* External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
* User manual
DVI over Cat5 Solutions B140-1A0 B140-1A1-WP Type Remote Unit Extender Kit Extension Distance 200 ft. at 1024 x 768 (60Hz)
150 ft. at 1920 x 1080 (60Hz) 200 ft. at 1024 x 768 (60Hz)
150 ft. at 1920 x 1080 (60Hz) Maximum Resolution 1920 x 1080 (60Hz) 1920 x 1080 (60Hz) Compatible Splitter Units B140-002 and B140-004 — Form Factor Box Style Wallplate Warranty 1-year 1-year
