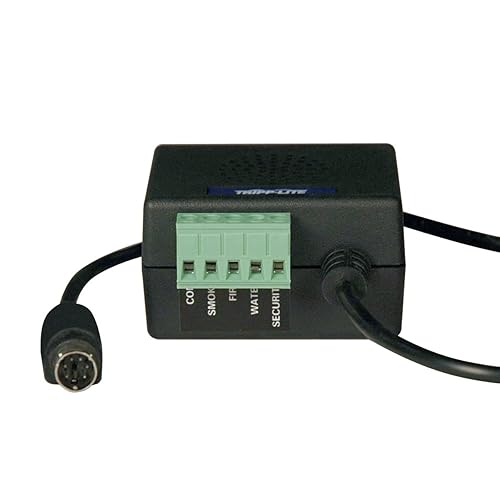

Don't just protect your IT equipment against power problems; ensure ideal environmental conditions with the ENVIROSENSE Environmental Sensor from Tripp Lite. The ENVIROSENSE relays ambient temperature and humidity readings to a Tripp Lite SNMP accessory card (Model: SNMPWEBCARD or SNMPWEBSOLO) installed in a compatible UPS or PDU. The sensor can also send and receive contact closure signals, communicating with up to four compatible devices (such as smoke detectors, fire alarms and security systems). Its 12-ft. cord broadens potential mounting options.
KEY FEATURES
ENVIROSENSE ENVIRONMENTAL SENSOR OFFERS:
* Environmental Sensor for use with Tripp Lite SNMP/Web Cards
* Connects to Tripp Lite Internal or External SNMP/Web Cards
* Allows remote temperature/humidity monitoring in network environments
* Provides monitoring and control of alarm, security and telecom devices through a dry-contact interface
* 2-year product warranty
Remotely Monitor Your IT Environment
Click here for a larger imageREMOTELY MONITOR YOUR IT ENVIRONMENT
Downtime isn't just caused by power problems—other factors in the IT environment can cause equipment degradation and failure. The ENVIROSENSE accessory allows IT managers the ability to monitor temperature and humidity within their IT architecture to ensure that equipment isn't affected by high-moisture conditions and excessive heat.

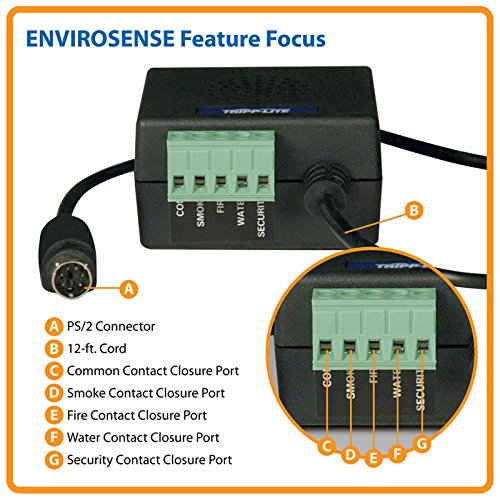

CONTACT CLOSURE PORTS
Five contact closure ports allow connection of alarm, security and telecom devices, meaning you can monitor every aspect of your IT environment—from anywhere!
VERSATILE INSTALLATION
The ENVIROSENSE sensor's extra-long cord enables it to be mounted up to 12 feet from the SNMPWEBCARD, meaning it can be located in specific “trouble spots” or even provide a farther reach to make connections with various alarm, security and telecom devices.
PEACE OF MIND
The ENVIROSENSE comes with a two-year warranty.
TECHNICAL SPECIFICATIONS
TRIPP LITE ENVIROSENSE ENVIRONMENTAL SENSOR
Click here for a larger image Model: ENVIROSENSE Compatibility: Expansion slot-equipped Tripp Lite SmartPro/SmartOnline UPS Systems & PDUs Required Hardware: SNMPWEBCARD Required Software: Tripp Lite PowerAlert 12 Dimensions (HWD): 1.5 x 2.5 x 2.5 in. Unit Weight: 0.4 lb Cable Length: 12 feet (3.66 meters) Temperature Measurement Range: 32° to 149° F (0° to 65° C) Temperature Measurement Accuracy: ± 8% from 59° to 95° F (15° to 35° C) Humidity Measurement Range: 10% to 90% Humidity Measurement Accuracy: ± 2% Power Dissipation: <400 m Warranty: 2-year Agency approvals: RoHS WHAT'S IN THE BOX
* ENVIROSENSE Environmental Sensor
* Owner's Manual
TRIPP LITE PROTECTS AND POWERS ALL NETWORK EQUIPMENT
SNMPWEBCARD SNMP/WEB MANAGEMENT ACCESSORY CARD
Allows any expansion slot-equipped Tripp Lite UPS system to operate as a managed device on the network. The SNMPWEBCARD enables remote monitoring and control of UPS and site electrical conditions using the SNMP network management platform or a web browser. The SNMPWEBCARD also supports selective rebooting of locked network equipment without disrupting power to other devices when used with customized load management receptacles available on select Tripp Lite UPS systems. 2-year warranty.
SMART1500RM2U SMARTPRO® UPS SYSTEM
Advanced automatic voltage regulation and battery backup protection for servers, storage devices and telecom equipment in 2U of rack space. The SMART1500RM2U provides 1500VA/1000W power capacity with 8 outlets arranged in 2 load banks that are individually controllable for remote equipment reboots or load shedding. One USB port and one DB9 port with included cables and PowerAlert monitoring software provide complete power network monitoring and control. The SMART1500RM2U supports connected equipment for 19 minutes during power failures at a half load of 500 watts. $250,000 Ultimate Lifetime Insurance; 2-year warranty.
PDUMH15ATNET POWER DISTRIBUTION UNIT
Switched/metered 1U rackmount PDU with integrated automatic transfer switching (ATS). The PDUMH15ATNET provides 15A 120V capacity with 8 NEMA 5-15R outlets, sequential outlet power-on capability to prevent inrush-related equipment interaction on startup, programmable or real-time monitoring and outlet power control via secure web/network interface, and ATS to provide power from a secondary input source when primary input fails. 2-year warranty.
SRCOOL12K SELF-CONTAINED PORTABLE AIR CONDITIONING UNIT
Compact, portable air conditioning unit is ideal for wiring closets and other space-critical locations where facility air conditioning can't reach. 12,000 BTU of cooling power. Connects to a standard 5-15R receptacle; no adapter required. Uses EPA-compliant R410a refrigerant. Standard louvered vent for general room cooling; ducted vent to direct cold air where needed. Requires no floor drain or water collection tank. 1-year warranty.
B020-U08-19-K NETDIRECTOR™ CONSOLE KVM SWITCH
Controls an entire network in just 1U of rack space. The B020-U08-19-K combines a keyboard, 19-in. LCD screen, touch pad, numeric keypad, and 8-port KVM switch in a 1U slide-out unit. It is USB or PS/2 compatible with 8 included PS2/USB Combo Cable Kits to connect switch to servers. Controls up to 504 servers by daisy-chaining additional KVMs. Includes two front-mounted USB ports: one for attachment of a separate USB mouse and one to connect USB peripherals (flash drive, external hard drive, etc.) that can be shared between connected servers.
SR42UB SMARTRACK™ ENCLOSURE
Premium 42U rack enclosure with doors and side panels. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. The SR42UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.
