FROM THE MANUFACTURER
Spread your message far and wide—gain even more distance and displays with Tripp Lite's B126-110 HDMI over Cat5 Active Extender Remote/Repeater unit. The B126-110 both expands and extends your application, allowing you to connect multiple remote monitors in a chain of up to 700 ft.! When installed between the transmitter and receiver units of Tripp Lite's B126-1A1 HDMI over Cat5 kit, the B126-110 extends a 1080i (60Hz) signal up to 175 ft. and a 1080p (60Hz) signal up to 125 ft. With its HDMI output connector, the B126-110 adds a display wherever it is installed. Up to three remote/repeater units can be installed between a transmitter and receiver, adding three more displays at varying points in your application. Built-in equalization control is included to provide ultimate control over image quality at each remote display. The B126-110 is manufactured to RoHS standards and is TAA compliant for GSA schedule purchases.
KEY FEATURES
TRIPP LITE'S B126-110 HDMI OVER CAT5 ACTIVE EXTENDER REMOTE/REPEATER UNIT:
* Ideal for use in schools, retail locations, conference rooms or any application needing to extend an HDMI signal
* Both extends and expands your installation, allowing you to locate multiple monitors in a chain up to 700 ft.
* Extend a 1080i (60Hz) signal up to 175 ft., or a 1080p (60Hz) signal up to 125 ft.
* Plug-and-play setup with built-in equalization and gain controls to adjust the video image
* RoHS and TAA-compliant design
The Smart Solution for Digital Signage Applications
Click here for a larger image Create a Multi-Display HDMI Installation Over 700 ft.
Click here for a larger image Convenient Plug-and-Play Setup
Click here for a larger imageTHE SMART SOLUTION FOR DIGITAL SIGNAGE APPLICATIONS
The B126-110 expands and extends your existing HDMI over Cat5 application, making it perfect for digital signage installations with growing demands such as retail, point-of-sale displays, schools, churches and others. By extending an application by up to 700 ft. and adding as many as three monitors, the B126-110 is made to meet the growing demands of digital signage.
GREATER DISTANCE—GREATER FLEXIBILITY
When placed between the transmitter and receiver units of Tripp Lite's B126-1A1 HDMI extender kit, the B126-110 extends a 1080i (60Hz) signal up to 175 ft. and a 1080p (60Hz) signal up to 125 ft. The B126-110 also includes an HDMI output connector, allowing you to connect a remote display to each unit. Up to three remote/repeaters can be installed between a transmitter and receiver, allowing you to add three more displays along your application.
TRIPP LITE PROVIDES THE COMPLETE SOLUTION
The B126-110 is compatible with almost all of Tripp Lite's HDMI over Cat5 solutions. It can be used with a B126-002 or B126-004 splitter or a B126-1A1 extender kit.
CONVENIENT PLUG-AND-PLAY SETUP
With no software or drivers to install, the B126-110 is ready to use in your application right out of the box. Simply connect the Cat5e/6 input and output along with the unit's power supply and watch as the B126-110 extends your application with crystal-clear resolution. The unit also includes built-in equalization control for ultimate image quality control.
VERSATILE INSTALLATION OPTIONS
The B126-110 includes mounting hardware, enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount. For further flexibility, up to three units can be mounted in 1U of rack space using Tripp Lite's B132-004-RB 19-inch rackmount bracket.
ENVIRONMENTALLY RESPONSIBLE
The B126-110 features a green, RoHS-compliant design that is also TAA-compliant for GSA schedule purchases.
ABOUT TRIPP LITE
Outstanding product reliability and exceptional service have been Tripp Lite trademarks for 90 years. Tripp Lite's innovations include the world's first UPS system designed specifically for personal computers, and the world's most trusted premium surge suppressor—the Isobar®—with more than 19 million in use. Tripp Lite maintains the highest level of ready-to-ship inventory in the industry with more than 2,500 different products, including UPS systems, rack systems and cooling solutions, PDUs, PowerAlert software for enterprise-level system management and control, surge suppressors, KVM switches, cables and connectivity products, inverters, power strips and notebook accessories. Headquartered in Chicago, Illinois, Tripp Lite maintains a global presence with fully staffed offices worldwide.
TECHNICAL SPECIFICATIONS
Click here for a larger image Tripp Lite's B126-110 HDMI over Cat5 Active Extender Remote/Repeater Unit Type: HDMI over Cat5 Remote/Repeater Connectors: 2 x RJ45 female

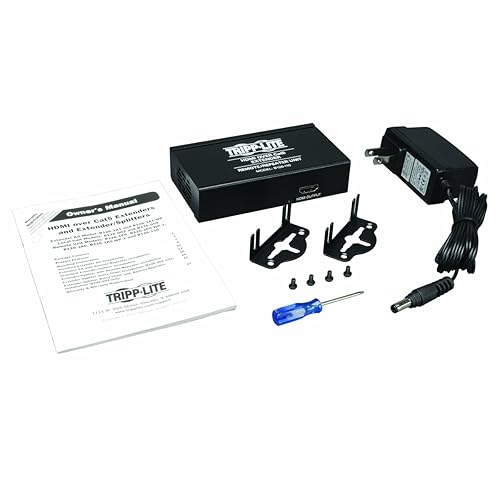

1 x HDMI female Housing: Black Resolution/Range: 1080i (60Hz)/175 ft; 1080p (60Hz)/125 ft. Certifications: RoHS, TAA Warranty: 1-year limited warranty WHAT'S IN THE BOX
* B126-110 HDMI over Cat5 Active Extender remote/Repeater
* External AC Power Adapter
* Mounting Hardware
* Screwdriver for Equalization Adjustment
* User manual
