AMAZON.CA PRODUCT DESCRIPTION
null
FROM THE MANUFACTURER

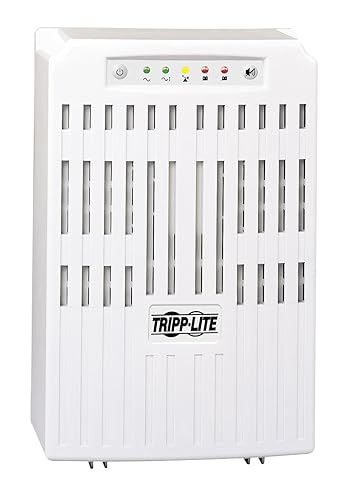

Featuring a compact tower form factor, Tripp Lite's SMART2200VS SmartPro® UPS System protects connected equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Featuring advanced automatic voltage regulation, it provides regulated nominal 120 VAC output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts. Two USB and two DB9 communication ports support messaging of detailed UPS operational parameters and line power status plus direct monitoring of directly connected devices. Included PowerAlert UPS monitoring and unattended shutdown software provides management support for an unlimited number of network UPS systems.
KEY FEATURES
SMART2200VS UPS SYSTEM OFFERS:
* Reliable protection for servers, networking equipment, telecom systems and more
* Advanced line-interactive operation corrects brownouts and overvoltages
* 9 battery-supported AC outlets including 3 individually controllable load banks
* Included PowerAlert software for complete network power management and control
* $250,000 Ultimate Lifetime Insurance; 2-year warranty
Reliable protection for servers, networking equipment, telecom systems and more

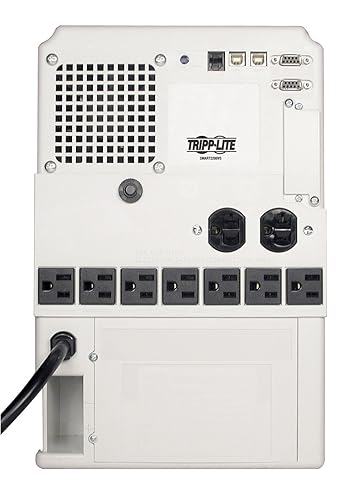

Click here for a larger image USB/DB9/EPO Ports and LEDs
Click here for a larger imageIDEAL FOR PROTECTION OF DATA CENTER/NETWORK RACKMOUNT EQUIPMENT
The SMART2200VS provides advanced automatic voltage regulation, reliable battery backup and comprehensive power management capability in a compact tower form factor. Featuring nine outlets (2 x 5-15/20R, 7 x 5-15R), two USB ports and two DB9 ports (one serial, one contact closure) and SNMP capability, the SMART2200VS offers a complete power protection solution for protection for servers, storage devices and telecom equipment.
ADVANCED AUTOMATIC VOLTAGE REGULATION (AVR)
Advanced AVR protects connected equipment from incremental hardware damage, data loss and performance problems that can be caused by brownouts (low-voltage conditions) and overvoltages. The SMART2200VS can correct brownouts as low as 79V and overvoltages as high as 147V, providing safe computer-grade power to all connected components without consuming backup battery power needed to support equipment through blackouts.
CONTROLLABLE LOAD BANKS
The SMART2200VS features three load banks, each with two outlets, that are individually controllable via a software interface for remote reboot of locked-up equipment or load shedding to maximize battery backup time for mission-critical equipment. 3 pairs of customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or shed less critical loads to extend battery runtime for the most critical equipment.
RELIABLE BATTERY BACKUP
UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SMART2200VS features a large internal battery that provides 7 min. of battery support for a full load (1600 watts) and 19 min. for a half-load (800 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed.
SURGE SUPPRESSION AND EMI/RFI LINE NOISE FILTERING
A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SMART2200VS features a 480-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART2200VS incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.
PowerAlert SMART2200VS Runtime Chart
Click here for a larger imageUSB/DB9 PORTS, SNMP CAPABILITY AND INCLUDED POWERALERT SOFTWARE
The SMART2200VS features two USB ports and two DB9 ports (one serial, one contact closure). When used with Tripp Lite's included PowerAlert software, the USB and serial ports provide comprehensive network power monitoring and control. Capabilities include UPS and line power status messaging (on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity), timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices. The contact closure port enables a directly connected device, such as an alarm or environmental sensor, to be monitored. The SMART2200VS also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network.
EMERGENCY POWER-OFF (EPO) CAPABILITY
The SMART2200VS features an EPO (RJ45) interface port that supports emergency shutoff in large facilities.
FRONT-PANEL LED DISPLAY
The SMART2200VS features an array of five front-panel LEDs that show line power, battery power, AVR, overload and replace battery status. An audible alarm sounds to alert users to power failure, overload and low-battery conditions.
VERSATILE INSTALLATION OPTIONS
The SMART2200VS's compact tower form factor makes it easy to integrate with a wide range of home, business, commercial, industrial and IT applications.
ULTIMATE PEACE OF MIND
The SMART2200VS comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment and a 2-year warranty.
TECHNICAL SPECIFICATIONS
TRIPP LITE SMART2200VS SMARTPRO® UPS SYSTEM
Click here for a larger image Model: SMART2200VS Voltage compatibility: 120 VAC Frequency compatibility: 60 Hz VA/Wattage Capacity: 2200/1600 Battery runtimes (half/full): 19 min./7 min. Outlet quantity/type: 2 x 5-15/20R, 7 x 5-15R (3 individually controllable load banks) Communications ports: 2 x USB, 2 x DB9
SNMP slot Input cord: 8 ft. Input plug: 5-20P Switches/LEDs/alarms: On/Off switch
Alarm cancel/self-test switch
5 LEDs
Audible alarm Dimensions (HWD): 14.2 x 9.2 x 12.0 in. (compact tower) Weight: 52 lbs. UPS housing material: PVC Agency approvals: UL 1778 (US) / CSA (Canada)
NOM (Mexico)
FCC Part 15 Category A (EMI)
RoHS WHAT'S IN THE BOX
* SMART2200VS UPS System
* PowerAlert Software CD
* 2 x 6-ft. USB Cable
* 2 x 6-ft. DB9 Cable
PROTECT, POWER, ORGANIZE AND CONTROL WITH TRIPP LITE
Tripp Lite UPS Systems, Power Management Accessories, Power Distribution Units, Rack Enclosures, KVM Switches and Rackmount Consoles are available with a wide range of features and options to meet the needs of any data center or networking application.
SMART2200RM2U SMARTPRO® UPS SYSTEM
Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment in 2U of rack space. The SMART2200RM2U provides 2200VA/1920W power capacity with 8 outlets including 3 outlets that are individually controllable for remote equipment reboots or load shedding. USB and DB9 ports, an SNMP accessory slot and PowerAlert monitoring software provide complete power network monitoring and control. The SMART2200RM2U supports connected equipment for 13 minutes during power failures at a half load of 960 watts. $250,000 Ultimate Lifetime Insurance; 2-year warranty.
SMART3000VS SMARTPRO® UPS SYSTEM
Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment in a compact tower format. The SMART3000VS provides 3000VA/2250W power capacity with 10 outlets including 3 load banks, each with 2 outlets, that are individually controllable for remote equipment reboots or load shedding. Four communication ports (2 x USB, 2 x DB9), an SNMP accessory slot and PowerAlert monitoring software provide complete power network monitoring and control. The SMART3000VS supports connected equipment for 14 minutes during power failures at a half load of 1125 watts. $250,000 Ultimate Lifetime Insurance; 2-year warranty.
U022-010 USB 2.0 A/B GOLD DEVICE CABLE—10 FT.
Connects USB devices to USB computers. Supports data transfer rates up to 480 Mbps. Premium double shielding; gold-plated connectors with gold-plated copper contacts assure positive connectivity. Lifetime warranty.
SNMPWEBCARD
Allows any expansion slot-equipped Tripp Lite UPS system to operate as a managed device on the network. The SNMPWEBCARD enables remote monitoring and control of UPS and site electrical conditions using the SNMP network management platform or a web browser. The SNMPWEBCARD also supports selective rebooting of locked network equipment without disrupting power to other devices when used with customized load management receptacles available on select Tripp Lite UPS systems. 2-year warranty.
ENVIROSENSE ENVIRONMENTAL SENSOR
Provides remote temperature/humidity monitoring and a dry contact interface to control and monitor alarm, security and telecom devices in network, data center and similar applications. Requires UPS system with installed SNMPWEBCARD or switched PDU. 2-year warranty.
P022-001 18AWG POWER EXTENSION/ADAPTER CABLE—1 FT.
Attaches to an existing power cord to extend its length by 1 ft. Can also be used to connect AC adapters and transformers, preventing them from blocking other outlets on a surge suppressor or power strip. Standard 5-15R receptacle and 5-15P plug. Lifetime warranty.
SMART2200VS
