PRODUCT DESCRIPTION
Tripp Lite's SMART750SLT intelligent, line-interactive sine wave UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 15 minutes half load runtime and 5 minutes fully loaded. 750VA/500 watt power handling capability and full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes 8 protected NEMA 5-15R output receptacles total, 4 of which offer surge suppression-only for less critical desktop accessories. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory card slot, USB and DB9 serial monitoring ports. Communications interfaces support messaging of UPS and line power status, plus output power control for delayed or immediate reboot of all connected devices at once. PowerAlert UPS monitoring software is available via free download. Built-in audible alarm and LEDs offer status notification for line power, battery power, battery charge level, load level, plus AVR boost and trim operational status information. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Also includes single line TEL/DSL or Ethernet line surge suppression. Attractive, all-black tower housing.
FROM THE MANUFACTURER
Do you need to protect electronic equipment such as servers, networking equipment and telecom systems against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges? Tripp Lite's SMART750SLT SmartPro® Tower UPS System is the solution! Featuring selectable input voltage and advanced automatic voltage regulation, it provides regulated nominal 100, 110 or 120 VAC output without using battery power during brownouts and overvoltages. The SMART750SLT's large internal batteries support connected equipment during blackouts. Built-in USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert UPS monitoring and unattended shutdown software provides management support for an unlimited number of network UPS systems.
KEY FEATURES
SMART750SLT TOWER UPS SYSTEM OFFERS:
* Reliable protection for servers, networking equipment, telecom systems and more
* Advanced line-interactive operation to correct brownouts and overvoltages
* 8 AC outlets plus tel/Ethernet line protection
* Included PowerAlert software for complete network power management and control
* $250,000 Ultimate Lifetime Insurance; 2-year warranty
Ideal for Protection of Home or Office PCs and Peripherals

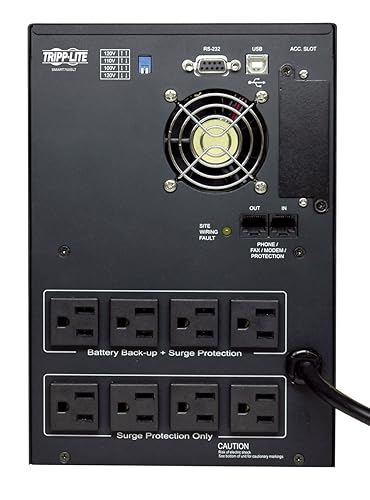

Click here for a larger image LEDs, USB/DB9 Ports and Tel/Ethernet Ports
Click here for a larger imageIDEAL FOR PROTECTION OF DATA CENTER/NETWORK EQUIPMENT
The SMART750SLT provides advanced automatic voltage regulation, reliable battery backup and comprehensive power management capability in a compact tower form factor. Featuring eight 5-15R outlets, USB/DB9 ports and an SNMP accessory slot, the SMART750SLT provides a complete power protection solution for servers, storage devices and telecom equipment.
ADVANCED AUTOMATIC VOLTAGE REGULATION (AVR)
Advanced AVR protects connected equipment from incremental hardware damage, data loss and performance problems that can be caused by brownouts (low-voltage conditions) and overvoltages. The SMART750SLT can correct brownouts as low as 83V and overvoltages as high as 145V, providing safe computer-grade power to all connected components without consuming backup battery power needed to support equipment through blackouts.
RELIABLE BATTERY BACKUP
UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SMART750SLT features a large internal battery that provides 5 minutes of battery support for a full load (500 watts) and 15 minutes for a half-load (250 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed.
HIGHLY EFFICIENT OPERATION REDUCES BTU OUTPUT
The SMART750SLT features high-efficiency operation (95%+) that can significantly reduce a facility's energy costs by minimizing heat output, lowering cooling requirements and reducing the consumption of electricity.
AC LINE AND TEL/ETHERNET SURGE SUPPRESSION
A sudden power surge or spike on a phone or network line can damage or destroy electronic components and wipe out irreplaceable data. The SMART750SLT features a 480-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. One set of tel/Ethernet (RJ45) jacks provides surge protection for a standard phone or network connection (cable not included).
EMI/RFI LINE NOISE FILTERING
Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART750SLT incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.
PowerAlert SMART750SLT Runtime Chart
Click here for a larger imageUSB/DB9 PORTS, SNMP CAPABILITY AND INCLUDED POWERALERT SOFTWARE
The SMART750SLT features a USB port and a DB9 port (cables included). Used with Tripp Lite's included PowerAlert software these communication ports provide comprehensive network power monitoring and control. Capabilities include UPS and line power status messaging (on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity), timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices. The SMART750SLT also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network.

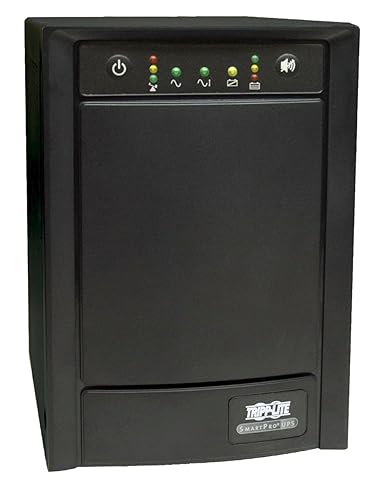

FRONT-PANEL LED DISPLAY
The SMART750SLT features an array of nine front-panel LEDs that show line power, battery power, AVR, overload and replace battery status, including a pair of three-level red/yellow/green LED meters to indicate the UPS load level and battery charge level. An additional LED on the rear of the unit illuminates to indicate a site wiring fault. Multi-function audible alarm indicates power failure and overload conditions.
VERSATILE INSTALLATION OPTIONS
The SMART750SLT's compact tower form factor makes it easy to integrate with a wide range of home, business, commercial, industrial and IT applications.
ULTIMATE PEACE OF MIND
The SMART750SLT comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment and a 2-year warranty.
TECHNICAL SPECIFICATIONS
TRIPP LITE SMART750SLT SMARTPRO® TOWER UPS SYSTEM
Click here for a larger image Model: SMART750SLT Voltage compatibility: 100/110/120 VAC (selectable) Frequency compatibility: 50/60 Hz VA/Wattage Capacity: 750/500 Battery runtimes (half/full): 15 min./5 min. Outlet quantity/type: 8 x 5-15R (4 UPS/surge, 4 surge only) Signal line protection: RJ45 tel/Ethernet jacks (1 set) Communications port: 1 x USB, 1 x DB9
SNMP slot Input cord: 6 ft. Input plug: 5-15P Switches/LEDs/alarms: On/off switch
Alarm cancel/self-test switch
10 LEDs
Audible alarm Dimensions (HWD): 10.2 x 6.8 x 9 in. (compact tower) Weight: 30 lbs. UPS housing material: Steel Agency approvals: UL 1778 (US/Canada)
NOM (Mexico)
FCC Class A
RoHS WHAT'S IN THE BOX
* SMART750SLT Tower UPS System
* PowerAlert Software CD
* 1 x 6-ft. USB Cable
* 1 x 6-ft. DB9 Cable
