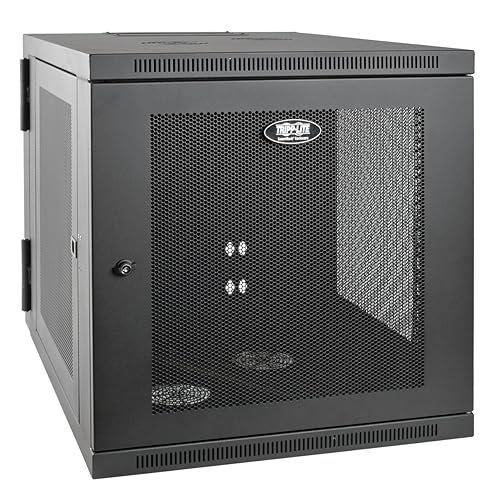

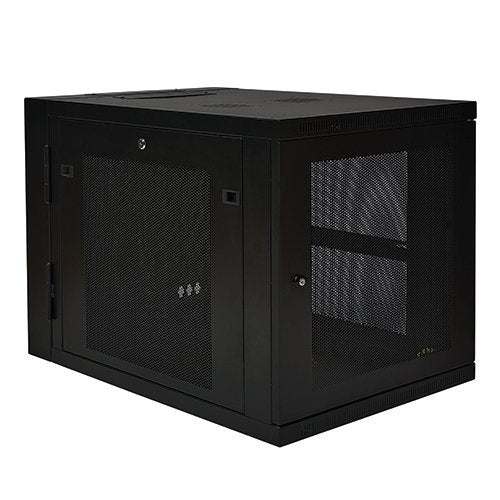

Tripp Lite SRW12U33 12U Wall Mount Rack Enclosure Cabinet with 33-Inch Extended Depth (Black)

AMAZON.CA PRODUCT DESCRIPTION

null

FROM THE MANUFACTURER

Get all your valuable equipment protected, secure and off the ground! Tripp Lite's SRW12US33 Extended Depth Wall-Mount Rack Enclosure Cabinet is the ideal storage solution for rackmount equipment in applications with limited floor space. Constructed with a hinged wall mounting bracket and a sturdy steel frame, it can accommodate up to 140 lbs. of equipment in 12U of rack space. With adjustable mounting depths from 3 to 33 inches, the SRW12US33 fits all standard 19" equipment regardless of vendor. To allow easy access to rackmounted equipment, the enclosure cabinet is hinged to swing away from the wall mounting bracket. The SRW12US33 also features perforated lockable side panels and front door, assuring generous airflow to keep equipment operating safely. The front door is reversible and the side panels are removable for easy access to equipment. The top and bottom panels of the enclosure include convenient cable routing ports. The SRW12US33 ships fully assembled and with a 5-year product warranty.

KEY FEATURES

SRW12US33 EXTENDED DEPTH WALL-MOUNT RACK ENCLOSURE:

* Design that integrates wall-mounting, easy equipment access and cable management in IT network applications with limited floor space

* Easy equipment access from all sides with a hinged wall bracket

* Adjustable mounting depths from 3 to 33 inches

* Locking, reversible front door and locking, removable side panels

* Heavy-duty steel construction supports up to 140 lbs. of equipment

* Ships fully assembled for quick installation

* Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance

* 5-year warranty

Simple Setup and Equipment Installation

Click here for a larger image Easy, Secure Equipment Access

Click here for a larger imageSIMPLE SETUP AND EQUIPMENT INSTALLATION

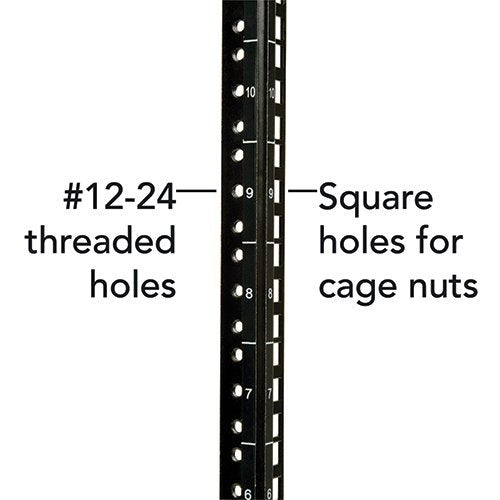

The SRW12US33 comes fully assembled, eliminating the need for time-consuming, confusing assembly and installation. When the time comes to install equipment, the front and rear pairs of rails adjust quickly and conveniently in one-inch increments. Simply unscrew the rails, slide them to the desired depth and restore the screws. Square mounting holes and included hardware support up to 140 lbs. of standard 19-inch rack equipment in 12U of space.

EXTENDED-DEPTH FOR COMPLETE COMPATIBILITY

With its 33-inch extended-depth construction, the SRW12US33 accommodates all standard 19-inch rack equipment, regardless of vendor, making it ideal for any application requiring a secure enclosure in limited floor space. The heavy-duty steel construction easily handles extra leverage created by bulky equipment.

EASY, SECURE EQUIPMENT ACCESS

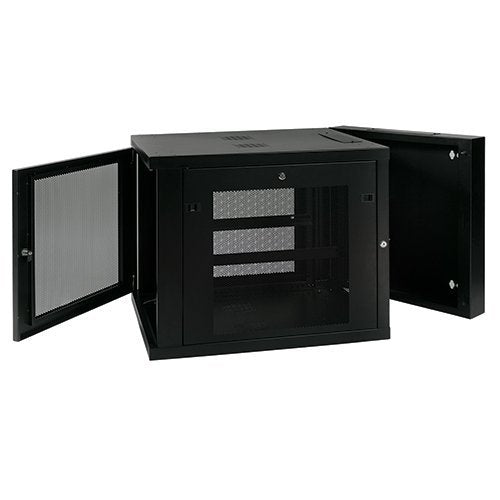

The wall bracket includes a sturdy hinge that allows the SRW12US33 to swing away from the wall for convenient access to equipment and cabling. The swing direction of the enclosure and door can be reversed by rotating the enclosure 180 degrees before installation. The wall bracket locks to provide secure access. The front door locks to provide secure access and is perforated to promote efficient airflow.

INNOVATIVE, HEAVY-DUTY CONSTRUCTION

The SRW12US33 features rugged, all-steel construction to handle heavy equipment loads. Its side panels are lockable and removable for ease of installation and service access. The side panels are perforated to allow generous airflow.

VENTED TOP AND BOTTOM PANELS WITH CABLE PORTS

The top and bottom panels of the SRW12US33 are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans. The top and bottom panels also include ports for cable routing through the movable portion of the enclosure or the fixed wall bracket. Removable covers block unused cable ports.

SMARTRACK ACCESSORIES ADAPT, ENHANCE AND EXPAND ENCLOSURES

The optional SRCASTER rolling caster kit adapts the enclosure to floor-standing and roll-away applications under desks, tables or counters. Additional SmartRack Cooling Solutions and Rack Accessories are available for a variety of applications:

• Air Conditioning • Rack Shelves • Cable Management • Power • Mounting • Airflow Management • Heat Removal • Security & Monitoring

PEACE OF MIND WITH LONG WARRANTY AND PCI COMPLIANCE

The SRW12US33 comes with a 5-year manufacturer's product warranty and meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.

TECHNICAL SPECIFICATIONS

TRIPP LITE SRW12US33 SMARTRACK™ WALL MOUNT RACK ENCLOSURE CABINET

Click here for a larger image Rack spaces: 12 Load capacity: 140 lbs. Mounting depth: 3 to 33 in. Mounting holes: Square (mounting hardware included) Door: Lockable/reversible/perforated Side panels: Lockable/removable/perforated Top & bottom panels: Vented Cable ports: Top and bottom panels (removable covers) Height: 25.00 in. Width: 23.63 in. Depth: 33.50 in. Weight: 100 lbs. Material of construction: Steel

SmartRack™ Wall-Mount Enclosures SRW12US33 SRW12US SRW12USG SRW10US SRW18US Rack Space 12U 12U 12U 10U 18U Weight Capacity 250 lbs. 200 lbs. 200 lbs. 200 lbs. 250 lbs. Hinged Bracket Special Features Extended Depth 33” — Plexiglas® Door — — Meets PCI Standards Warranty 5-year 5-year 5-year 5-year 5-year

ORGANIZE AND PROTECT RACK EQUIPMENT WITH TRIPP LITE

Tripp Lite SmartRack™ Enclosures and UPS Systems and accessories are available with a wide range of features to provide reliable, cost-effective power protection and connectivity solutions for all electronics.

SRCASTER HEAVY-DUTY ROLLING CASTER KIT

Tripp Lite's SmartRack SRCASTER is a heavy duty rolling caster kit. SRCASTER allows 4 post open frame racks and SRW12US (wall mount enclosure) to become mobile. The kit includes caster (heavy duty 550 lb per caster rating), installation guide and mounting hardware.

SRFAN3U 120V FAN PANEL, 3U

Tripp Lite's SRFAN3U SmartRack Panel-mount Triple Fan Accessory (for use with SmartRacks) is ideal for increasing the ventilation of SmartRacks, enclosures and server cabinets. The unit features (3) 4-in. 120V fans mounted in a 3U panel, 6-ft. cord and mounting hardware.

SRSHELF2P1U 1U CANTILEVER FIXED SHELF

Fixed shelf, 1U cantilever mount, cold-rolled steel with black finish. Required mounting hardware included. Supports up to 40 lbs.

SR25UB SMARTRACK™ ENCLOSURE

Premium 25U rack enclosure with doors and side panels. The SR25UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load rating. The SR25UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

SMART1000RM1U SMARTPRO® UPS SYSTEM

Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment. The SMART1000RM1U provides 1000VA/640W power capacity with 6 outlets arranged in 2 load banks. One USB port and one DB9 port with included cables and PowerAlert monitoring software provide complete power network monitoring and control. The SMART1000RM1U supports connected equipment for 15 minutes during power failures at a half load of 320 watts. $250,000 Ultimate Lifetime Insurance (USA/Canada only); 2-year product warranty.

ISOBAR12ULTRA RACKMOUNT SURGE SUPPRESSOR

Premium Isobar® surge protection for rackmount equipment and all electronics. Exclusive isolated filter banks and a high 3840-joule surge suppression rating provide ultimate protection. The rugged all-metal 1U rackmountable housing with detachable mounting brackets is ideal for heavy-duty rackmount installations. 12 surge-protected AC outlets (2 front, 10 rear) and a 15-ft. cord. Lifetime warranty with $25,000 Ultimate Lifetime Insurance.

SRW12US33
