AMAZON.CA PRODUCT DESCRIPTION
null
FROM THE MANUFACTURER

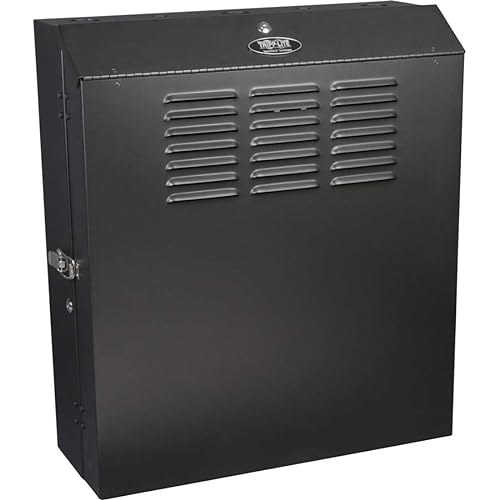

Lack of space doesn't have to mean lack of network capability! With Tripp Lite's SRWF5U Low-Profile, Wall-Mount Rack Enclosure, you can mount IT network equipment in areas with limited floor space. With its vertical orientation, SRWF5U conveniently mounts up to 150 lbs. of standard 19" rackmount equipment, up to 5U, in less space than a standard wall-mount rack enclosure. With a ventilated front door and bottom panels, the SRWF5U allows generous airflow and keeps equipment operating at its peak. Adjustable horizontal rack rails accommodate a wide variety of equipment, while the locking, reversible front door provides security and the ability to tailor the enclosure to your application. The SRWF5U comes with a 2U mounting bracket that can be used to install a patch panel, and it partially slides out for easier cabling access. The enclosure meets all requirements towards Payment Card Industry Data Security Standard compliance and comes fully assembled for easy deployment. For extra peace of mind, the SRWF5U is RoHS compliant and comes with a 5-year warranty.
KEY FEATURES
TRIPP LITE'S SRWF5U LOW-PROFILE, WALL-MOUNT RACK ENCLOSURE:
* Ideal for keeping equipment secure and organized in applications with limited space
* 5U vertical wall-mount rack enclosure cabinet
* Adjustable horizontal rack rails and slide-out, 2U patch panel bracket
* Locking, reversible, ventilated door and ventilated bottom panels
* Ships fully assembled for quick installation
* Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
* RoHS-compliant with 5-year warranty
Keep Equipment Secure and Off the Floor
Click here for a larger image Toolless Mounting
Click here for a larger imageKEEP EQUIPMENT SECURE AND OFF THE FLOOR
The SRWF5U is ideal for IT applications where floor space is limited and security is a consideration. Its locking door and secure construction are the perfect solution for keeping limited-access devices secure and out of the way in classrooms, back offices and storage closets. Its unique vertical design allows the SRWF5U to maintain a lower profile than a regular wall-mount rack enclosure while accommodating 150 lbs. of equipment in 5U of rack space. Adjustable horizontal mounting rails allow compatibility with almost all 19-inch rack equipment.
SIMPLE EQUIPMENT INSTALLATION
The SRWF5U simplifies equipment installation with its adaptable horizontal rails, which can be easily adjusted to accommodate a variety of equipment configurations. The mounting rails have threaded spaces and can accommodate both M6 and 12-24 hardware for quick installation.
VENTED DOOR AND BOTTOM PANELS
The SRWF5U's door and bottom panels are both vented for increased airflow, allowing equipment to operate at its peak while maintaining security.
CONVENIENT CABLE MANAGEMENT
With cable access holes in its top and bottom panels, along with slide-out mounting brackets with space for 2U patch panels, the SRWF5U offers a variety of easy cable management options. The SRWF5U's integral, slide-out mounting bracket at the top of the enclosure can be used to secure a patch panel to the enclosure, and it partially slides out for easier cabling access.
LOCKABLE, REVERSIBLE FRONT DOOR
The SRWF5U's front door and top panel can be locked with the unique set of included keys for equipment security. For additional security, the front door's latch can accommodate a user-supplied padlock. In order to accommodate various rack applications, the front door can be completely and quickly reversed to swing in either direction by manipulating its latch.
QUICK DEPLOYMENT
For quick, easy deployment, the SRWF5U comes fully assembled and includes mounting hardware. This means hassle-free setup with money and time saved on installation!
PEACE OF MIND
The SRWF5U comes with a 5-year warranty for peace of mind. The enclosure also meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance and complies with RoHS manufacturing standards.
TECHNICAL SPECIFICATIONS
Click here for a larger image Tripp Lite SRWF5U Wall-Mount Rack Enclosure Rack spaces: 5 Load capacity: 150 lbs. Mounting depth: 17-20 in. Mounting holes: Threaded M6 and 12-24 Door: Lockable/reversible/vented Top & bottom panels: Vented Cable ports: Top and bottom panels Height: 28.80 in. Width: 25.60 in. Depth: 9.70 in. Weight: 29 lbs. Material of construction: Steel Warranty: 5 years WHAT'S IN THE BOX
* SRWF5U Low-Profile Wall-Mount Enclosure
* (12) M6 Screws
* (12) M6 Cup Washers
* (12) 12-24 Screws
* (2) Keys
* Owner's Manual
SmartRack™ Wall-Mount Enclosures SRWF5U SRW6U SRW9U SRW12US SRW12USG Rack Space 5U 6U 9U 12U 12U Weight Capacity 150 lbs. 200 lbs. 200 lbs. 200 lbs. 200 lbs. Special Features Vertical Orientation — — Hinged, Swinging Bracket Hinged, Swinging Bracket, Plexiglas® Door Meets PCI DSS Enclosure Standards Warranty 5-year 5-year 5-year 5-year 5-year
