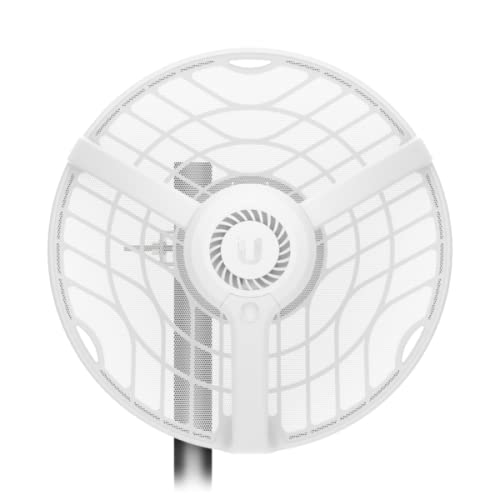

Ubiquiti airFiber 60 LR | airFiber 60 GHz Point to Point Backhaul Radio System with Extended Range and Wave Technology (AF60-LR)

Ubiquiti airFiber 60 LR | airFiber 60 GHz Point to Point Backhaul Radio System with Extended Range and Wave Technology (AF60-LR)

Returns / Exchanges: Sealed Product Only

810010073310

$423.49 CAD
$0.00 CAD $423.49 CAD
Sale Sold out
Shipping calculated at checkout.

The airFiber 60 LR uses Wave Technology to establish links over 12 km and can reach a 1.9 Gbps maximum throughput rate. It also has a dedicated Bluetooth management radio so it can be set up quickly and fully configured with the UISP Application and Mobile App. It can also be seamlessly integrated into an existing deployment with Ubiquiti’s dedicated link planning platform and tracked from anywhere with its built-in GPS antenna. Note: This product should be purchased in pairs in order to form links.

TECHNICAL SPECIFICATIONS

Dimensions: Ø413 x 360 mm (Ø16.3 x 14.2")

Weight: Without mount: 1.5 kg (3.3 lb); With mount: 2.7 kg (6 lb)

Enclosure materials: Aluminum, UV stabilized polycarbonate

Mount material: Galvanized steel

Mounting: Precision alignment kit (included)

Pole compatibility: Ø25.4 to 76.2 mm (Ø1 to 3")

Wind loading: 420 N at 200 km/h (94.4 lbf at 125 mph)

Processor: Quad-Core ARM Cortex A7

Memory: 256 MB DDR3

Networking interface: (1) GbE RJ45 port

Max. power consumption: 22W

Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply: 48V DC, 0.65A gigabit PoE adapter (included)

Supported voltage range: 44–54V DC; 22–27V DC

GPS: Yes

RF connections: Internal

ESD/EMP protection: Air/contact: ± 24kV

Operating temperature: -40 to 60° C (-40 to 140° F)

Operating humidity: 5 to 95% noncondensing

Operating mode: PtP only

Ubiquiti specific features: Wave technology, discovery utility

Network: Bridge mode

Services: UISP, ping watchdog, NTP client

Tools: Antenna alignment, discovery utility, ping, trace route, speed test

Software management: Bluetooth management for easy setup over UISP app; WEB UI

Minimum software requirements: Any modern web browser/iOS or Android based smartphone

Max. throughput: 1.95 Gbps

Max. range: 12+ km

Encryption: WPA2-PSK (AES)

Operating frequency*: 57–71 Ghz (*Depends on regulatory region.)

Channel bandwidth: 2160, 1080 MHz

Polarization: Vertically linear

Beamwidth: Azimuth: 3 dB 1.6°; Elevation: 3 dB 1.6°
